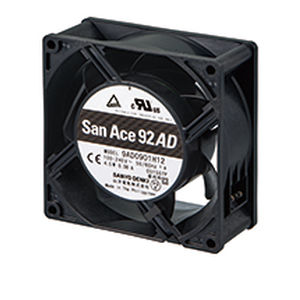

PC fan / axial / cooling / thermally-controlled
9AD0901H121

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
PC fan / axial / cooling / thermally-controlled PC fan / axial / cooling / thermally-controlled - 9AD0901H121
{{requestButtons}}

Characteristics

  • Installation:

    for PC

  • Configuration:

    axial

  • Function:

    cooling

  • Other characteristics:

    thermally-controlled, industrial, DC

  • Air flow:

    Max.: 1.5 m³/min (52.97 ft³/min)

    Min.: 1.18 m³/min (41.67 ft³/min)

Description

ACDC Fan San Ace 92AD
9AD0901H121

Eco Products, UL ratings, CSA standards, EN standards, Electrical Appliances and Material Safety Law, CE marking, RoHS directive, Splash Proof, Oil Proof, Long Life, Wide Temperature Range, G Proof, Low Power Consumption, Counter Rotating, Round type, Sidecut type, Short Lead Time

Specifications

Model No.
9AD0901H121

Frame size [mm]
92

Frame thickness [mm]
38

Frame material
Plastic

Rated voltage [V]
100~240

Operating voltage range [V]
90~264

Frequency [Hz]
50/60

Rated current [A]
0.08

Rated input [W]
4.5

Rated speed [min-1]
3850

Max. airflow [m3/min]
1.5

Max. airflow [CFM]
53

Max. static pressure [Pa]
90

Max. static pressure[inchH2O]
0.36

SPL [dB(A
40

Operating temperature[˚C]
-20~+75

Expected life[h]
60000/60℃
(90000/40℃)

Mass [g]
250

PWM control function
No

Ribbed
No
