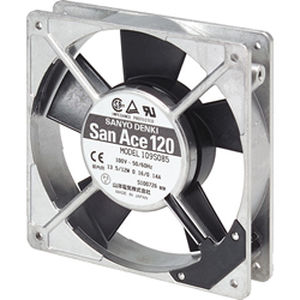

AC fan 109S081for PCaxialcooling
Add to favorites
Compare this product
Characteristics
- Installation
- for PC
- Configuration
- axial
- Function
- cooling
- Supply voltage
- AC
- Drive mechanism
- electrically-powered
- Material
- aluminum
- Other characteristics
- industrial
- Air flow
1.7 m³/min, 1.8 m³/min
(60.035 ft³/min, 63.566 ft³/min)- Rotational speed
2,200 rpm, 2,350 rpm
(13,823 rad.min-1, 14,765 rad.min-1)- Noise level
34 dB, 35 dB
Description
Frame size [mm]
120
Frame thickness [mm]
25
Frame material
Aluminum
Rated voltage [V]
100
Operating voltage range [V]
90～110
Frequency [Hz]
50/60
Locked rotor current [A]
0.11/0.1
Rated current [A]
0.11
Rated input [W]
9.5/8.5
Max. static pressure [Pa]
29.4/26.5
Max. static pressure[inchH2O]
0.118/0.106
Operating temperature[˚C]
-30～+60
Expected life[h]
25000/60℃ （56000/40℃）
Mass [g]
370
PWM control function
No
Ribbed
No
