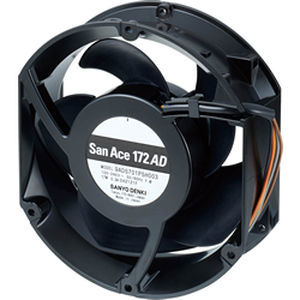

Axial electronic fan 9AD5701P5H003coolingDCAC
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling
- Supply voltage
- DC, AC
- Material
- aluminum
- Air flow
6.7 m³/min
(236.608 ft³/min)
Description
Frame thickness [mm]
51
Frame material
Aluminum
Operating voltage range [V]
90～264
Frequency [Hz]
50/60
Rated current [A]
0.3
Rated input [W]
17
Rated speed [min-1]
3800
Max. airflow [CFM]
236
Max. static pressure [Pa]
195
Max. static pressure[inchH2O]
0.78
SPL [dB(A
54
Operating temperature[˚C]
-20～+70
Expected life[h]
40000/60℃ (70000/40℃)
Mass [g]
750
Sensor type
Pulse sensor
PWM control function
Yes
Ribbed
No
Remarks
Lead wire model
Catalogs
San Ace Cooling Systems
52 Pages
