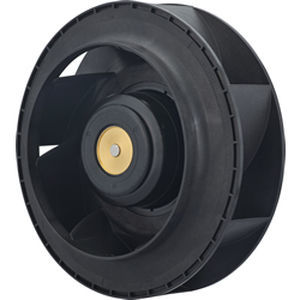

Centrifugal electronic fan 9ADTU11P0G001coolingDCAC
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- cooling
- Supply voltage
- DC, AC
- Material
- aluminum
- Air flow
16.5 m³/min
(582.692 ft³/min)
Description
Frame thickness [mm]
88
Operating voltage range [V]
90～132
Frequency [Hz]
50/60
Rated current [A]
2.5
Rated input [W]
150
Rated speed [min-1]
4800
Max. airflow [m3/min]
16.5
Max. airflow [CFM]
583
Max. static pressure [Pa]
1200
Max. static pressure[inchH2O]
4.82
SPL [dB(A
72
Operating temperature[˚C]
-25～+60
Expected life[h]
40000/60℃ (70000/40℃)
Mass [g]
1600
Sensor type
Pulse sensor
PWM control function
Yes
