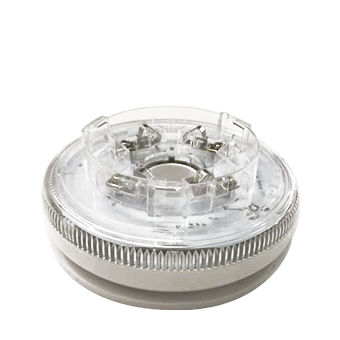

Sounder with LED beacon A9097B
self-extinguishingIP2124VDC

Sounder with LED beacon - A9097B - Shenzhen HTI Sanjiang Electronics Co., Ltd. - self-extinguishing / IP21 / 24VDC
Sounder with LED beacon - A9097B - Shenzhen HTI Sanjiang Electronics Co., Ltd. - self-extinguishing / IP21 / 24VDC
Sounder with LED beacon - A9097B - Shenzhen HTI Sanjiang Electronics Co., Ltd. - self-extinguishing / IP21 / 24VDC - image - 2
Sounder with LED beacon - A9097B - Shenzhen HTI Sanjiang Electronics Co., Ltd. - self-extinguishing / IP21 / 24VDC - image - 3
Sounder with LED beacon - A9097B - Shenzhen HTI Sanjiang Electronics Co., Ltd. - self-extinguishing / IP21 / 24VDC - image - 4
Add to favorites
Compare this product

Characteristics

Type
with LED beacon
Protection level
IP21, self-extinguishing
Voltage level
24VDC
Certifications
EN 54-3
Other characteristics
with audio signal
Sound level

Max.: 87 dB

Min.: 73 dB

Description

Product name
  • Intelligent Sounder Beacon Base (A9097B)


Key features
  • Complies with EN54-3 Type A.
  • Rotary locking mechanism for quick and reliable installation.
  • Multiple high-intensity red LEDs for a powerful visual signal.
  • Integrated detector base and sounder beacon; compatible with A9030T smoke detector and A9020T heat detector. Single-point connection for detector, sounder and LED beacon simplifies installation and maintenance.


Product info
  • A9097B is addressable, loop-powered and designed for low power consumption to minimise installation costs. The detector can be mounted directly on the base.
  • When commanded by a loop-type fire alarm control panel, the unit provides a bright visual alarm and a loud audible signal to prompt evacuation.
  • Suitable for audible and flashing alarms in environments with reduced visibility or smoke risk: high-rise residential buildings, public spaces, hotels, entertainment venues, factories, shopping centres, hospitals, schools and offices.


Technical specifications
  • Standard: EN54-3 Type A
  • Loop input: DC24V (20–28V), ≤2mA (monitor), ≤8mA (alarm)
  • Power consumption: <0.2W @ DC24V
  • Sound output: ≥73dB(A) @ 1m
  • Flash rate: 1–2 Hz
  • Flash colour: RED
  • Ingress protection: IP21
  • Operating temperature: -10°C to +55°C
  • Relative humidity: ≤95% (non‑condensing)
  • Material (Lens/Body): Flame-retardant PC / PC+ABS
  • Dimensions: 115 mm × H44 mm (with bracket)
