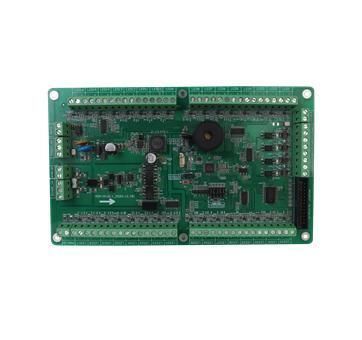

Mimic board MDM-M

Overview
The Mimic driver comprises two PCBs: the MDM-M (Main board) and the MDM-EX (Expansion board). The MDM-M connects to the CIE via RS-485 and provides 32 configurable LED outputs powered from an external EN54-4 supply. One MDM-M supports up to three MDM-EX boards for a total of 128 LED outputs per panel.

Key features

• 32 configurable LED outputs per board; expandable to 128 outputs with one Main and three Expansion boards.
• Four dry contact inputs per board; each input can be linked to any LED output.
• RS-485 communication; one panel supports up to 32 Mimic drivers (up to 4096 outputs and 512 inputs total).
• Outputs configurable for fire, fault, normal, start, feedback and disabled indications.
• Trigger options: Zone, Address or dry contact input.
• Main board firmware and configuration can be updated via the CIE.
• Powered outputs supplied from an external EN54-4 power supply; CE compliant.

Technical specifications

• Operating voltage: 24V DC (15–32V)
• Static current @24V DC: Main board 17mA; Main + 3 Expansion boards 26mA
• Operating current @24V DC: Main board (board & 33 LEDs) 80mA; Main + 3 Expansion boards (boards & 129 LEDs) 230mA
• Each LED current: ≤6mA
• Communication: RS-485
• Communication distance: ≤1000m with twisted pair cable
• Operating temperature: -5℃ to 45℃
• Relative humidity: ≤95% non-condensing
• Wire gauge for terminals: 0.5mm² to 2.5mm²
• Screw type: M3
• Dimensions (W x D x H): 210mm x 125mm x 19mm
• Weight: Main board 235g; Expansion board 205g

Installation and compatibility
Connect the MDM-M to the CIE via RS-485. Use an EN54-4 compliant external power supply for the powered outputs. Follow recommended terminal wire gauges (0.5–2.5mm²) and M3 screw fittings. Ensure ambient conditions are within the specified temperature and humidity ranges. Firmware updates and configuration are performed through the CIE.
