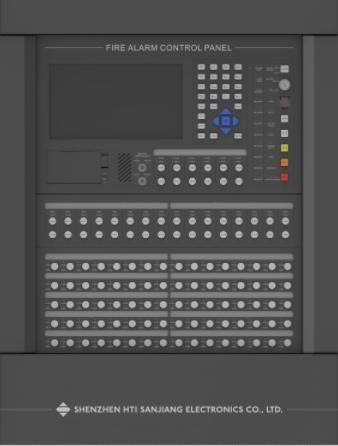

Fire alarm control panel JB-QBL-A108E

addressableprogrammablenetworked

Product
Fire alarm control panel
Model: JB-QBL-A108E

Product features

• 10-inch color LCD with 1024×600 resolution
• Operation interface with Windows-like menu and window layout for intuitive use
• Supports standard USB keyboard and mouse or front-panel keys for on-site programming and control
• Single-unit maximum capacity: 8 loops × 324 device addresses = 2,592 alarm points
• Supports interconnection of up to 254 control panels; networked system capacity up to 254 × 8 × 324 = 658,368 alarm points
• Single-unit multi-line linkage control: up to 22 points
• Single-unit manual control: up to 80 points

Product Info
JB-QBL-A108E fire alarm control linkage panel is a next-generation controller from Shenzhen HTI Sanjiang Electronics Co., Ltd. It is designed for medium to large fire-safety projects and is suitable for high-end office buildings, large residential complexes, department stores, stadiums, exhibition halls, libraries, factories, supermarkets and hotels.

Technical Parameters

• Maximum loops: 8 loops; 324 device addresses per loop
• Main power: AC 220V/50Hz (187V–242V)
• Maximum working current: 10 A
• Backup power: maintenance-free DC 24V battery, BAT 12V/14Ah × 2
• Operating temperature: 0 °C to +40 °C; Storage temperature: 0 °C to +55 °C
• Relative humidity: ≤95% (non-condensing)
• Standards: GB 4717-2005; GB 16806-2006

Specifications

• Model: JB-QBL-A108E
• Display: 10-inch color LCD, 1024×600
• Interface: Windows-like menu/window
• Programming/control: USB keyboard, mouse or panel keys
• Single-unit capacity: 8 loops × 324 addresses = 2,592 alarm points
• Network capacity: up to 254 interconnected panels (total up to 658,368 alarm points)
• Multi-line linkage control unit: up to 22 points
• Manual control unit: up to 80 points
• Power: AC 220V/50Hz; Backup DC 24V (BAT 12V/14Ah × 2)
• Max working current: 10 A
• Operating/storage temperature and humidity as above
