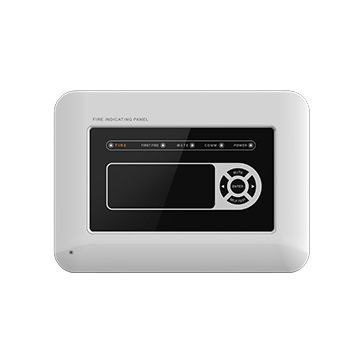

Wall-mounted alarm annunciator JB-FSD-9082

Key Features

• Microprocessor-controlled fire indicating repeater panel
• RS-485 bus communication, maximum bus length up to ~1000 m
• Displays up to 99 information items per unit
• Compact wall-mount design for indoor use; easy to operate and install

Product Description
JB-FSD-9082 Fire Indicating Panel is a microprocessor-controlled repeater panel designed to connect to a fire alarm control panel via RS-485. Installed per floor, it provides local audible and visual indication; when a detector or module triggers, the panel emits sound and light alarms and displays relevant event information for rapid identification.

Technical Specifications

• Model: JB-FSD-9082
• Type: Fire Indicating Panel (Repeater)
• Control: Microprocessor-controlled
• Communication: RS-485 bus, max bus length up to ~1000 meters
• Operating Voltage: DC 24V ±20%
• Operating Current: Monitoring ≤32mA; Alarm ≤66mA
• Certification: CCC (GB17429-2011 Fire Display Panel)
• Display Capacity: Up to 99 information items per unit
• Fire-wire system: Power supply (+24V, GND), RS-485 bus (A, B) and PE earth
• Operating Environment: Indoor use
• Temperature Range: -10°C to +50°C
• Relative Humidity: ≤95% (40°C non-condensing)
• Dimensions: 210.0 × 150.0 × 33.5 mm
• Weight: 0.5 kg

Installation & Compatibility

• Connect to the fire alarm control panel via RS-485 (A, B) and power terminals (+24V, GND); provide PE for earthing.
• Recommended installation: one repeater panel per floor for local indication and faster event localization.
• Ensure ambient conditions match specified temperature and humidity ranges; intended for indoor applications.
