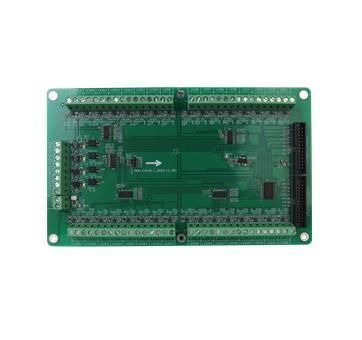

Mimic board MDM-EM

Product Features

• Main board and Expansion board each provide 32 configurable LED outputs; up to 3 Expansion boards can be connected to one Main board (max. 128 LED outputs).
• Each board includes 4 dry contact inputs; each input can be mapped to any LED output on the panel.
• Communication with the CIE is via RS-485 bus; one panel supports up to 32 Mimic drivers (up to 4096 outputs and 512 inputs total).
• Outputs are configurable for visual indications such as fire, fault, normal, start and feedback; a disabled indication state is available by default.
• Outputs can be triggered by Zone, Address or dry contact input.
• Main board firmware can be upgraded via the CIE.
• Complies with CE requirements.

Product Info
The MDM-EX is a slave (expansion) PCB controlled directly by the Mimic main board. Up to three Expansion boards can be connected to one Main board; each Expansion board supplies 32 LED outputs, allowing the panel output count to be extended up to 128. Expansion boards are powered from the Main board through the interlink cable.

Specification
Technical parameters:

• Operating voltage: 24 V DC (15–32 V)
• Static current @24 V DC: Main board 17 mA; Main board + 3 Expansion boards 26 mA
• Operating current @24 V DC: Main board (board & 33 LEDs) 80 mA; Main board + 3 Expansion boards (boards & 129 LEDs) 230 mA
• Each LED current: ≤6 mA
• Communication: RS-485
• Communication distance: ≤1000 m with twisted-pair cable
• Operating temperature: -5℃ to 45℃
• Relative humidity: ≤95%, non-condensing
• Wire gauge for terminals: 0.5 mm² to 2.5 mm²
• Screw type: M3
• Dimensions (W × D × H): 210 mm × 125 mm × 19 mm
• Weight: Main board 235 g; Expansion board 205 g
