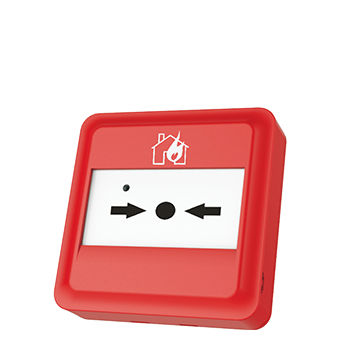

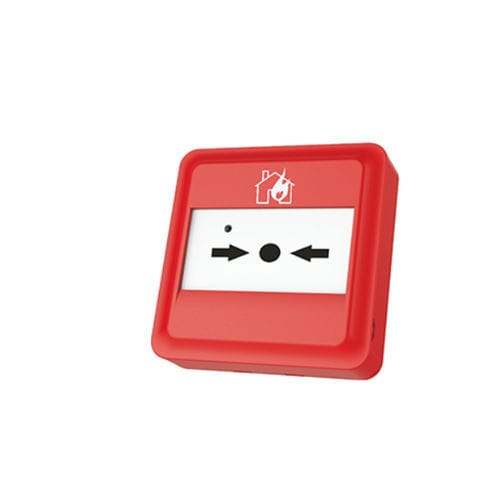

Fire alarm manual call point A9060T

Key features

• LPCB and CPR approvals
• Semi-flush or surface mounting options
• Reusable lever (non-glass type)
• LED status indicator

Overview
The A9060T manual call point is designed for intelligent two-wire loop fire detection systems. When activated after manual confirmation of a fire, it sends an alarm signal to the fire alarm control panel, which displays the coded address and device status. In normal standby the red indicator flashes; during an alarm it remains steady. The device supports electronic addressing for easy installation and configuration.

Technical specifications

• Standard: EN54-11
• Approvals: LPCB, CPR
• Protection class: IP43
• Supply voltage: 24 V (pulse modulation)
• Current consumption: monitoring <300 μA, alarm <2 mA
• Wiring: non-polar two-wire loop (L1, L2)
• Encoding: encoder-set address, range 1–324
• Indicator: red LED flashes in normal monitoring; steady on alarm
• Material / color: ABS, red
• Application: indoor use
• Operating temperature: -10 ℃ to 55 ℃; relative humidity ≤ 95% (non-condensing)
• Dimensions (surface-mount): 90 × 90 × 42 mm; exposed height after installation: 90 × 90 × 23 mm
• Weight: approx. 95 g
