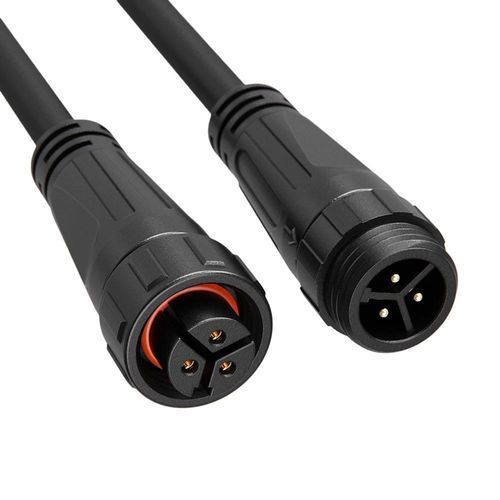

Electrical power supply connector

wire-to-wirecircularscrew

Overview

• 10A Power Delivery – Φ1.5mm copper alloy contacts support 10A/300V for reliable power connections.
• Screw Locking Mechanism – Threaded coupling for quick, secure connections with anti-vibration performance.
• IP68 Waterproof – Submersion-proof sealing for reliable performance in wet and dusty environments.
• Assembly Options – Available as field installable or molded with cable configurations.
• Global Certifications – UL, TUV, CE, RoHS.

Short description
10A 3-pin screw-locking waterproof circular connector with IP68 protection, available as field installable or cable-molded for power supply and automation.

Product Details (table)
Product Details | Specification 1 | Specification 2 | Specification 3 | Specification 4 | Specification 5 | Specification 6 | Specification 7
Pin number | 2 Pin | 3 Pin | 4 Pin | 5 Pin | 2+4 Pin | 7 Pin | 8 Pin
Pin diameter X number | 1.5mm | 1.5mm | 1.5mm | 1.0mm | 1.5+1.0mm | 1.0mm | 1.0mm
Current rating | 10A | 10A | 10A | 8A | 10A+5A | 5A | 5A
Voltage rating | 300V | 300V | 125V | 125V | 125V+60V | 60V | 60V
Withstanding voltage | 1500V | 1500V | 1500V | 1500V | 500V | 500V | 500V
Cable Gauge | 0.5mm²-1.0mm² (20-18AWG) | 0.5mm²-1.0mm² (20-18AWG) | 0.5mm²-1.0mm² (20-18AWG) | 0.75+0.5mm² (18+20AWG) | 0.75+0.5mm² (18+20AWG) | 0.3mm²-0.5mm² (24-20AWG) | 0.3mm²-0.5mm² (24-20AWG)
Diameter Range | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm
Protection Level | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68
Connecting mode | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking
Prevent the combustion level | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0
Operating temperature | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C
Certification | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS

Technical specifications

• Model: M16 3 Pin (M16 series)
• Contact: Φ1.5mm copper alloy contacts
• Current rating: 10A (3‑pin version)
• Voltage rating: up to 300V (3‑pin)
• Withstanding voltage: up to 1500V
• Cable gauge compatibility: typically 0.5mm²–1.0mm² (20–18AWG)
• Protection: IP68 (submersion proof); IP69K available as customizable option for specific models
• Connection type: screw locking (threaded coupling) for anti-vibration performance
• Flame retardance: UL94‑V0
• Operating temperature: -40°C to 105°C
• Mating durability: rated for 500+ mating cycles
• Certifications: ISO9001, CE, UL, RoHS, (TUV where applicable)
