Electrical power supply connector
wire-to-boardcircularbayonet

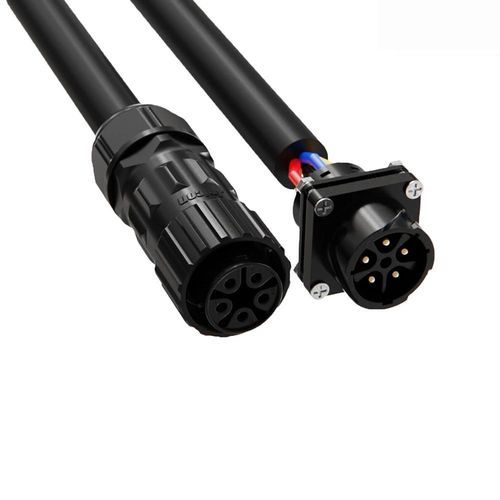

Electrical power supply connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-board / circular / bayonet
Electrical power supply connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-board / circular / bayonet
Electrical power supply connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-board / circular / bayonet - image - 2
Electrical power supply connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-board / circular / bayonet - image - 3
Electrical power supply connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-board / circular / bayonet - image - 4
Electrical power supply connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-board / circular / bayonet - image - 5
Electrical power supply connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-board / circular / bayonet - image - 6
Electrical power supply connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-board / circular / bayonet - image - 7
Add to favorites
Compare this product

Characteristics

Type
electrical power supply
Format
wire-to-board
Shape
circular
Connection type
bayonet
Electrical characteristics
5-pole, 3 pin, with 2 pins, 4 pin, 5 pin
Material
copper alloy
Domain
for LED lighting
Protection class
IP67
Other characteristics
waterproof, corrosion-resistant, anti-vibration
Primary current

40 A, 60 A, 80 A

Voltage

60 V, 125 V, 300 V

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 105 °C
(221 °F)

Description

Product Overview
  • 40A Multi-Pin Power – Φ3.0mm copper alloy contacts deliver 40A/300V in a compact 5-pin configuration for versatile applications.
  • Bayonet Locking Mechanism – Quick 90° twist connect and disconnect with secure locking, anti-vibration for demanding environments.
  • IP67 Waterproof – Fully sealed against water and dust, ideal for outdoor lighting and industrial control installations.
  • Wide Cable Compatibility – Supports Φ10.0mm–Φ19.0mm cable diameters.
  • Global Certifications – UL, TUV, CE, and RoHS certified.


Product Specifications
  • Pin number: 2 / 3 / 4 / 5
  • Pin diameter: 2-pin 4.8mm | 3-pin 4.8mm | 4-pin 3.6mm | 5-pin 3.0mm
  • Current rating: 2-pin 80A | 3-pin 80A | 4-pin 60A | 5-pin 40A
  • Voltage rating: 2-pin 300V | 3-pin 300V | 4-pin 300V | 5-pin 125V + 60V
  • Withstanding voltage: 2-pin 600V | 3-pin 600V | 4-pin 600V | 5-pin 300V
  • Diameter range (cable): Φ10.0mm–Φ19.0mm (all versions)
  • Protection level: IP67 (all versions)
  • Connecting mode: Bayonet lock, 90° rotation, anti-vibration
  • Flame retardancy: UL94-V0
  • Operating temperature: -40℃ to 105℃
  • Certifications: ISO9001, CE, UL, RoHS (UL/TUV referenced for factory compliance)


Technical characteristics
  • Series / Model: M28 series
  • Configuration: Circular connector, bayonet locking
  • Contact material (5-pin): Φ3.0mm copper alloy contacts
  • Typical mating durability: 500+ mating cycles (series)
  • Cable compatibility: Supports cable diameters Φ10.0mm–Φ19.0mm
  • Applications: Outdoor LED lighting, industrial control systems, energy storage interconnects (M28 family)
