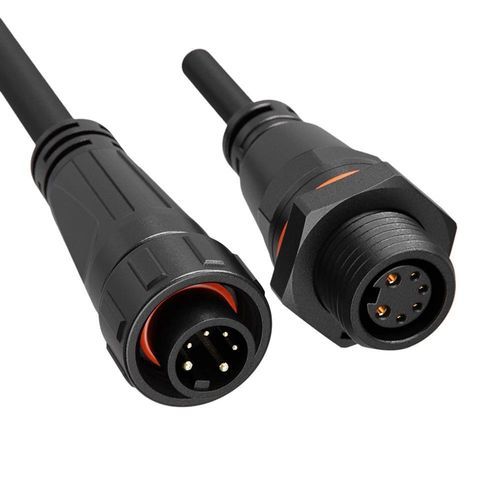

Hybrid connector

screw-lockedM162+4 pins

Overview

• 10A+5A hybrid screw-locking waterproof connector combining power and signal in one M16 housing, field installable or molded with cable.
• Power & Signal Hybrid – 2 power pins (10A/125V, Φ1.5mm) and 4 signal pins (5A/60V, Φ1.0mm) in one connector, simplifying wiring and saving space.
• Screw Locking Mechanism – Threaded coupling for secure connections with anti-vibration design.
• IP68 Waterproof – Fully sealed against water and dust, reliable in harsh industrial environments.
• Compact Design – Space-saving M16 form factor with mixed contact configuration for complex systems.
• Assembly Options – Available in field installable or molded-with-cable configurations.
• Global Certifications – UL, TUV, CE and RoHS certified.

Key technical data (2+4 Pin configuration)
Pin number: 2+4 Pin
Pin diameter X number: 1.5+1.0 mm
Current rating: 10A + 5A
Voltage rating: 125V + 60V
Withstanding voltage: 500V
Cable gauge: 0.75+0.5 mm² (18+20 AWG)
Diameter range: MAX φ3.6 mm
Protection level: IP68
Connecting mode: Screw Locking
Prevent the combustion level: UL94-V0
Operating temperature: -40℃ – 105℃
Certification: ISO9001, CE, UL, ROHS

Applications & Advantages

• Combines power and signal in a single compact M16 connector to reduce wiring complexity and save panel/machinery space.
• Screw-lock coupling provides robust anti-vibration retention for industrial environments.
• IP68 sealing and UL94-V0 flame-retardant housing ensure suitability for harsh, wet, and dust-prone applications.
• Field-installable or pre-molded cable options support flexible manufacturing and on-site installation needs.
• Wide operating temperature range and high mating-cycle durability support reliable long-term use in diverse climates and demanding conditions.

Technical specifications

• Series: M16
• Configuration: Hybrid (power + signal)
• Power contacts: 2 × Φ1.5 mm, 10A (125V)
• Signal contacts: 4 × Φ1.0 mm, 5A (60V)
• Protection: IP68 (waterproof & dustproof)
• Locking: Screw locking (threaded coupling)
• Cable compatibility: 0.75+0.5 mm² (18+20 AWG) for hybrid cable
• Withstanding voltage: 500V
• Flammability rating: UL94-V0
• Operating temperature range: -40℃ to 105℃
• Certifications: ISO9001, CE, UL, RoHS
