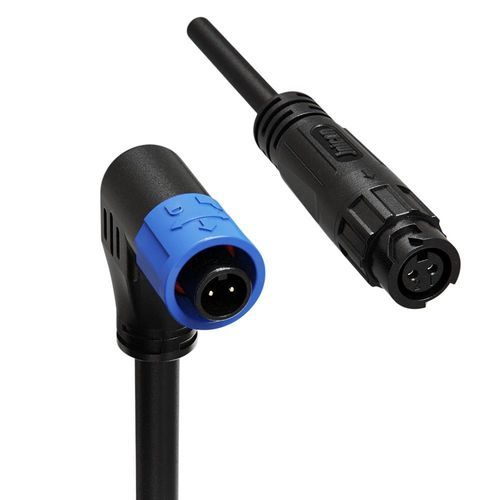

Electrical power supply connector

wire-to-wirecircularpush-to-lock

Product Overview

• 7A power rating – Φ1.2mm copper alloy contacts deliver stable 7A/300V power transmission for industrial sensors and actuators.
• Push-locking mechanism – Tool-free quick connect and disconnect with secure locking design for fast installation.
• IP67 waterproof & dustproof – Overmolded construction eliminates cable entry gaps, providing reliable sealing in harsh environments.
• Pre-molded with cable – Ready-to-use integrated cable assembly reduces field wiring time and ensures consistent connection quality.
• Compact M12 design – Standard M12 form factor for space-constrained installations.
• Global certifications – ISO9001, CE, UL, RoHS.

Summary
7A 2-pin push-locking waterproof M12 connector pre-molded with cable, IP67-rated and ready-to-use for sensor and industrial automation connections. Overmolded housing and flame-retardant materials ensure sealing and safe operation across a wide temperature range (-40°C to 105°C).

Product Specifications

• Pin options: 2, 3, 4, 5 pins
• Contact diameter: Φ1.2mm (standard)
• Current rating: 7A (2/3/4-pin), 7A+2A (5-pin)
• Voltage rating: up to 300V (125V+60V for 5-pin)
• Withstanding voltage: up to 1500V (1000V for 5-pin)
• Cable gauge: 0.3–1.0mm² (24–18 AWG)
• Max cable diameter: φ8.5mm
• Protection: IP67 (dustproof and temporary immersion resistant)
• Connection mode: Push locking (tool-free)
• Housing flame retardancy: UL94-V0
• Operating temperature: -40°C to 105°C
• Certifications: ISO9001, CE, UL, RoHS

Features / Technical specifications

• Series: M12
• Model type: 2-pin waterproof M12 connector, pre-molded with cable
• Contacts: Φ1.2mm copper alloy
• Typical applications: sensors, actuators, industrial automation, outdoor and wet environments
• Installation: Push-lock for rapid tool-free assembly
• Materials: Overmolded housing and flame-retardant compounds
