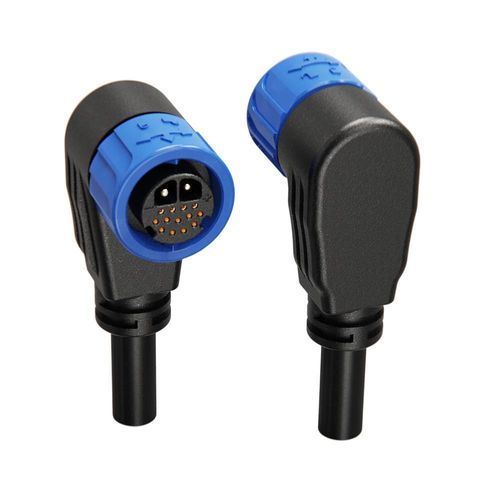

Data connector

electrical power supplywire-to-wirecircular

Product Summary
15-pin high-density signal connector with 20A power and 5A signal contacts, push-locking and IP67-rated for sensor networks and data transmission.

Overview

• High-Density 15-Pin Design – 2 power contacts (20A, φ2.4mm) and 13 signal contacts (5A, φ1.0mm) in a compact M23 housing, maximizing connectivity in limited space.
• Push-Locking Mechanism – Tool-free quick connect and disconnect with self-locking design, ensuring stable signal transmission in vibration-prone environments.
• IP67 Waterproof & Dustproof – Fully sealed design protects sensitive signal contacts from moisture and dust.
• Flexible Cable Installation – Supports 0.3mm²–6mm² (24–9 AWG) cables with max φ16mm diameter, suitable for various sensor and data cable types.
• Signal Integrity Guaranteed – Copper alloy contacts with gold/silver plating and UL94-V0 flame-retardant housing for reliable, interference-resistant signal transmission.
• Global Certifications – UL, TUV, CE, and RoHS certified.

Specifications Table
Product Details | Specification 1 | Specification 2 | Specification 3
Pin number | 6（2+4） Pin | 8（2+1+5） Pin | 15（2+13） Pin
Pin diameter X number | φ3.6+φ1.0 | φ3.6+φ2.0+φ1.0 | φ2.4+φ1.0
Current rating | 50A+5A | 50A+15A+5A | 20A+5A
Voltage rating | 300V+60V | 300V+125V+60V | 125V+60V
Withstanding voltage | 5000V | 3000V | 3000V
Cable Gauge | 0.3mm²–6mm²(24–9AWG) | 0.3mm²–6mm²(24–9AWG) | 0.3mm²–6mm²(24–9AWG)
Diameter Range | MAX φ16mm | MAX φ16mm | MAX φ16mm
Protection Level | IP67 | IP67 | IP67
Connecting mode | Push Locking | Push Locking | Push Locking
Prevent the combustion level | UL94-V0 | UL94-V0 | UL94-V0
Operating temperature | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃
Certification | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS

Features / Technical specifications

• Commercial model: M23 15-Pin Signal Waterproof Connector
• Pin count: 15 (2 power + 13 signal)
• Contact sizes: power φ2.4mm (20A), signal φ1.0mm (5A)
• Rated current (15-pin variant): 20A (power) + 5A (signal)
• Rated voltage: 125V + 60V (15-pin variant)
• Withstand voltage: 3000V
• Contact material: copper alloy with gold/silver plating (ensures signal integrity)
• Protection rating: IP67 (waterproof and dustproof)
• Connection mode: Push-Locking (self-locking, quick, tool-free)
• Supported cable cross-section: 0.3mm² – 6mm² (24–9 AWG), max diameter φ16mm
• Housing flammability: UL94-V0
• Operating temperature range: -40°C to +105°C
• Mechanical durability: >500 mating cycles specified
• Certifications: ISO9001, CE, UL, RoHS (TÜV/3C available depending on variant)
• Typical applications: sensor networks, power and data transmission in wet or dusty environments, industrial automation, outdoor lighting and embedded systems.
