Hybrid connector

dataelectrical power supplypush-to-lock

Short description

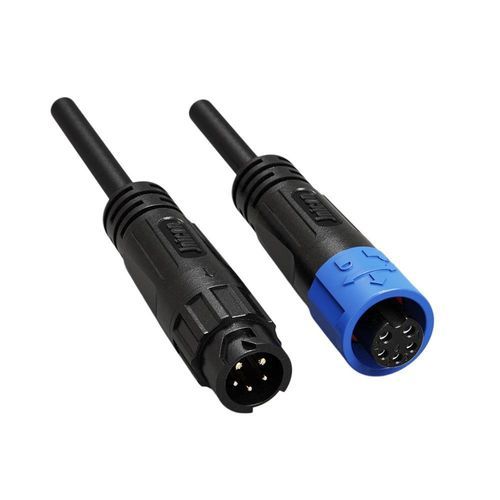

7A+2A hybrid push-locking waterproof connector pre-molded with cable, combining power and signal in one M12 housing for sensors and control systems.

Product Overview

• Power & Signal Hybrid – 2 power pins (7A/125V, Ø 1.2 mm) and 3 signal pins (2A/60V, Ø 1.0 mm) in one connector, simplifying sensor network wiring.
• Push-Locking Mechanism – Tool-free quick connect and disconnect for rapid installation.
• IP67 Waterproof – Overmolded with cable for superior water and dust protection, eliminating entry points.
• Ready-to-Use Solution – Pre-molded cable assembly eliminates field termination, ensuring consistent and reliable connections.
• Compact M12 Design – Space-saving 5-pin configuration ideal for sensor networks and fieldbus systems.
• Global Certifications – UL, TUV, CE, and RoHS certified.

Specifications (table)
Product Details | Specification 1 | Specification 2 | Specification 3 | Specification 4
Pin number | 2 Pin | 3 Pin | 4 Pin | 5 Pin
Pin diameter X number | 1.2mm | 1.2mm | 1.2mm | 1.2+1.0mm
Current rating | 7A | 7A | 7A | 7A+2A
Voltage rating | 300V | 300V | 300V | 125V+60V
Withstanding voltage | 1500V | 1500V | 1500V | 1000V
Cable Gauge | 0.3mm²-1.0mm² (24-18AWG) | 0.3mm²-1.0mm² (24-18AWG) | 0.3mm²-1.0mm² (24-18AWG) | 0.3mm²-1.0mm² (24-18AWG)
Diameter Range | MAX Ø8.5mm | MAX Ø8.5mm | MAX Ø8.5mm | MAX Ø8.5mm
Protection Level | IP67 | IP67 | IP67 | IP67
Connecting mode | Push Locking | Push Locking | Push Locking | Push Locking
Prevent the combustion level | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0
Operating temperature | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C
Certification | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS

Product Advantages & Features

• Waterproof and dustproof protection to IP67; optional IP69K available for high-pressure washdown requirements.
• Wide operating temperature range: -40°C to +105°C for stable performance in harsh environments.
• Flame-retardant housing with UL94 V-0 rating for enhanced safety.
• High mating durability: rated for 500+ mating cycles to reduce maintenance needs.

Technical Characteristics / Specifications

• Series / Model designation: M12 2+3 Pin Hybrid Waterproof Connector
• Contact arrangement: 2 power contacts + 3 signal contacts (total 5 pins)
• Power contact rating: 7A, Ø 1.2 mm
• Signal contact rating: 2A, Ø 1.0 mm
• Voltage rating: up to 125V for power pins and 60V for signal pins (2+3 configuration)
• Withstanding voltage (insulation): up to 1000V for 5-pin hybrid configuration
• Cable gauge supported: 0.3 mm² to 1.0 mm² (24–18 AWG)
• Maximum cable outer diameter: MAX Ø8.5 mm
• Protection class: IP67 (overmolded cable)
• Connecting mode: Push-locking (tool-free mating)
• Housing material / flame rating: UL94-V0 flame-retardant housing
• Operating temperature range: -40°C to +105°C
• Mating durability: 500+ mating cycles
• Typical applications: sensors, control systems, smart meters, IoT devices, industrial automation
• Pre-assembled option: available molded with cable for ready-to-use installations
• Certifications: ISO9001, CE, UL, RoHS, TUV
