Electrical power supply connector

wire-to-wirecircularlocking

Product overview

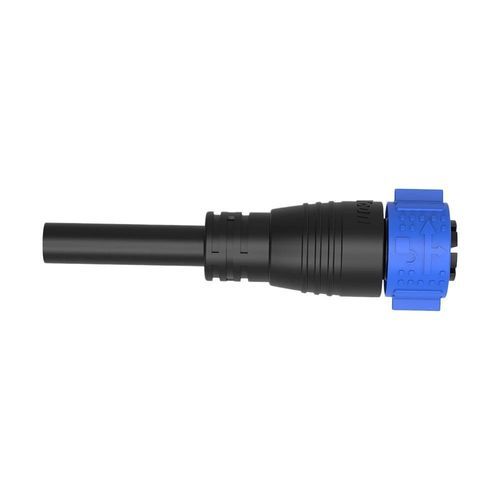

Pre-molded M25 2-pin 50A push-locking waterproof connector with IP67-rated sealing and pre-assembled cable, designed for reliable outdoor power connections in solar photovoltaic (PV) and energy storage systems. Suitable for industrial and lighting power distribution requiring sealed connections. The connector features UL94 V-0 housing and a wide operating temperature range for long-term field use.

Key features

• 50A rated power delivery — Φ3.5mm copper alloy contacts supporting 50A at 500V, for high-current DC/AC applications.
• Push-locking mechanism — Tool-free quick connect/disconnect with self-locking design to maintain secure contact under vibration.
• IP67 waterproof and dustproof — Fully sealed to resist water, dust and oil ingress for outdoor and industrial environments.
• Wide cable compatibility — Supports 1.0mm²–6mm² (18–9 AWG) cores with maximum outer diameter MAX φ16mm; supplied pre-molded on cable.
• Durable construction — UL94 V-0 flame-retardant housing and operating temperature range -40℃ to 105℃.
• Certifications — ISO9001, CE, UL, RoHS.

Product specifications (table)
Product Details — Specification 1 — Specification 2 — Specification 3 — Specification 4
Pin number — 2 Pin — 3 Pin — 4 Pin — 5 Pin
Pin diameter X number — φ3.5mm — φ3.5mm — φ3.5mm — 2.7mm
Current rating — 50A — 50A — 50A — 30A
Voltage rating — 500V — 500V — 500V — 300V
Withstanding voltage — 2500V — 2500V — 2500V — 1500V
Cable Gauge — 1.0mm²~6mm²(18~9AWG) — 1.0mm²~6mm²(18~9AWG) — 1.0mm²~6mm²(18~9AWG) — 1.0mm²~6mm²(18~9AWG)
Diameter Range — MAX φ16mm — MAX φ16mm — MAX φ16mm — MAX φ16mm
Protection Level — IP67 — IP67 — IP67 — IP67
Connecting mode — Push Locking — Push Locking — Push Locking — Push Locking
Prevent the combustion level — UL94-V0 — UL94-V0 — UL94-V0 — UL94-V0
Operating temperature — -40℃ – 105℃ — -40℃ – 105℃ — -40℃ – 105℃ — -40℃ – 105℃
Certification — ISO9001, CE, UL, ROHS — ISO9001, CE, UL, ROHS — ISO9001, CE, UL, ROHS — ISO9001, CE, UL, ROHS

Technical specifications

• Series / Model: M25 series
• Pin number: 2
• Contact type / material: Φ3.5mm copper alloy contacts
• Current rating: 50A
• Voltage rating: 500V
• Withstanding voltage: 2500V
• Cable gauge supported: 1.0mm² ~ 6mm² (18 ~ 9 AWG)
• Maximum cable outer diameter: MAX φ16mm
• Protection / IP rating: IP67 (waterproof & dustproof)
• Connecting mode: Push Locking (self-locking)
• Housing flame retardancy: UL94-V0
• Operating temperature range: -40℃ to 105℃
• Certifications: ISO9001, CE, UL, RoHS
• Intended use: Pre-molded cable assemblies for outdoor power connections in solar photovoltaic and energy storage systems; suitable for industrial and lighting power distribution requiring sealed waterproof connections.
