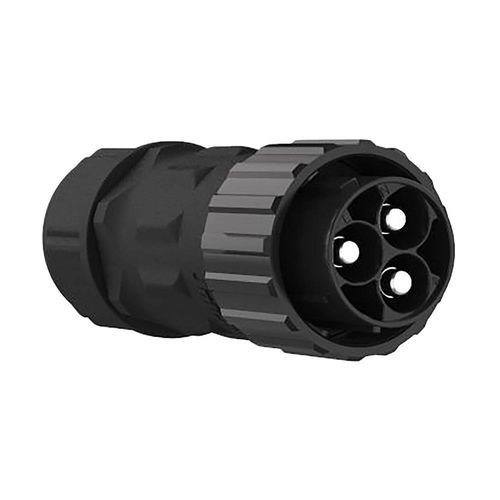

Electrical power supply connector

wire-to-wirebayonet3-pole

Product Overview

• 80A High Current Capacity – Φ4.8mm copper-alloy contacts deliver 80A/600V power transmission, matching the 2-pin model for high-power applications.
• Bayonet Locking Mechanism – Quick 90° twist locking with tactile and audible feedback, ensuring secure connections in high-vibration environments.
• IP67 Waterproof & Dustproof – Fully sealed against water and dust, suitable for outdoor solar farms and industrial plants.
• Wide Cable Compatibility – Supports Φ10.0mm–Φ19.0mm cable diameters.
• Global Certifications – UL, TUV, CE and RoHS certified.

Product Details (table)
Product Details | Specification 1 | Specification 2 | Specification 3 | Specification 4
Pin number | 2 Pin | 3 Pin | 4 Pin | 5 Pin
Pin diameter X number | 4.8mm | 4.8mm | 3.6mm | 3.0mm
Current rating | 80A | 80A | 60A | 40A
Voltage rating | 300V | 300V | 300V | 125V+60V
Withstanding voltage | 600V | 600V | 600V | 300V
Cable Gauge | (not specified) | (not specified) | (not specified) | (not specified)
Diameter Range | Φ10.0mm–Φ19.0mm | Φ10.0mm–Φ19.0mm | Φ10.0mm–Φ19.0mm | Φ10.0mm–Φ19.0mm
Protection Level | IP67 | IP67 | IP67 | IP67
Connecting mode | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock
Prevent the combustion level | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0
Operating temperature | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃
Certification | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS

Application & Advantages

• Designed for solar photovoltaic and energy storage systems requiring high-current, sealed outdoor connections.
• Robust bayonet locking with audible/tactile feedback for high-vibration and outdoor environments.
• High-reliability sealing (IP67) for temporary immersion resistance and dustproof performance; higher IP levels (IP68/IP69K) available as customization.
• Housing materials with UL94 V-0 flame-retardant rating and structural impact resistance for industrial use.
• High mating cycle durability (500+ mating cycles), reducing maintenance and replacement frequency.

Technical specifications

• Series: M28 series (3-pin variant described)
• Pin count (this product): 3 Pin
• Contact pin diameter (3-pin): Φ4.8mm
• Current rating (3-pin): 80A
• Voltage rating: 300V
• Withstanding voltage: 600V
• Diameter (cable) range supported: Φ10.0mm–Φ19.0mm
• Protection / Ingress: IP67 (waterproof & dustproof)
• Locking mechanism: Bayonet lock (90° twist)
• Combustion / flame retardant: UL94-V0
• Operating temperature: -40℃ to 105℃
• Typical certifications: ISO9001, CE, UL, RoHS (TUV available)
• Material highlights: copper-alloy contacts (silver/treated plating typical for high-current contacts); high-performance engineering plastic housing (UL94 V-0)
