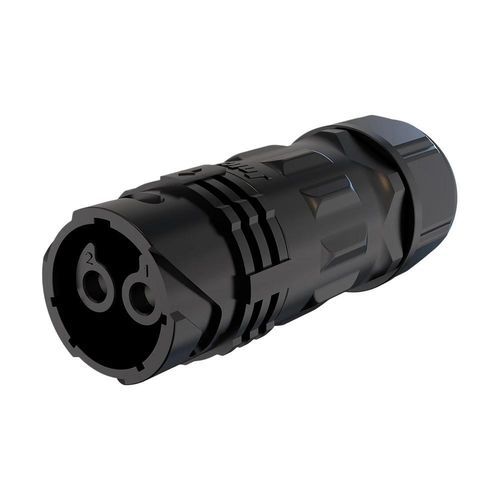

Electrical power supply connector

circularbayonethigh-current

Product Summary
M28 2-pin waterproof circular connector with a bayonet locking mechanism, IP67 protection when correctly mated and assembled, and an 80 A current rating. Designed for energy storage and industrial power connections. Confirm cable sizing, operating conditions and the matching connector before ordering.

Product Overview

• 80 A High Current Capacity – Φ4.8 mm copper alloy contacts support the 80 A rating. Confirm rated voltage, conductor size and derating for your application; withstanding (test) voltage is not continuous operating voltage.
• Bayonet Locking Mechanism – Quick 90° twist connect/disconnect with audible locking feedback for vibration resistance and prevention of accidental disconnection.
• IP67 Waterproof & Dustproof – Fully sealed against water and dust when mated and assembled correctly; suitable for harsh outdoor and industrial environments.
• Wide Cable Compatibility – Supports Φ10.0 mm–Φ19.0 mm cable diameters for flexible installation.
• Global Certifications – ISO9001, CE, UL and RoHS.

Product Details (table)
Product Details | Specification 1 | Specification 2 | Specification 3 | Specification 4
Pin number | 2 Pin | 3 Pin | 4 Pin | 5 Pin
Pin diameter X number | 4.8mm | 4.8mm | 3.6mm | 3.0mm
Current rating | 80A | 80A | 60A | 40A
Voltage rating | 300V | 300V | 300V | 125V+60V
Withstanding voltage | 600V | 600V | 600V | 300V
Cable Gauge | | | |
Diameter Range | Φ10.0mm–Φ19.0mm | Φ10.0mm–Φ19.0mm | Φ10.0mm–Φ19.0mm | Φ10.0mm–Φ19.0mm
Protection Level | IP67 | IP67 | IP67 | IP67
Connecting mode | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock
Prevent the combustion level | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0
Operating temperature | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C
Certification | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS

Technical specifications

• Series / Model: M28
• Pin count (for this product): 2 Pin
• Contact diameter (2-pin): Φ4.8 mm copper alloy contacts
• Rated current: 80 A
• Rated voltage: 300 V
• Withstanding (test) voltage: 600 V
• Cable diameter range: Φ10.0 mm – Φ19.0 mm
• Protection level: IP67 (when mated and assembled correctly)
• Connecting mode: Bayonet lock (90° twist, audible locking)
• Flame retardant rating: UL94-V0
• Operating temperature range: -40°C to 105°C
• Certifications: ISO9001, CE, UL, RoHS
