Product Summary

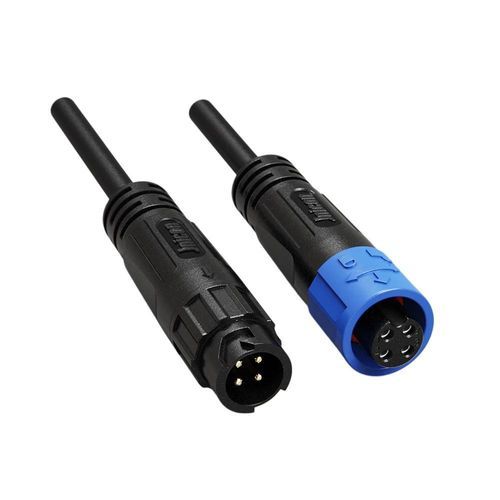

Pre-molded M12 4-pin push-locking waterproof connector with integrated cable, rated IP67 and 7 A/300 V for sensors, actuators and industrial automation devices.

Key Features

• 7 A power contacts — Φ1.2 mm copper alloy contacts, 7 A / 300 V in a compact 4-pin arrangement.
• Push-locking mechanism — tool-free quick connect/disconnect for fast field assembly and maintenance.
• IP67 overmolded construction — sealed against dust and temporary immersion.
• Pre-molded cable with strain relief — improved tensile strength and bend resistance for durable installations.
• A-coding (M12) — standard arrangement for sensor and actuator interfaces.
• Certifications — UL, TUV, CE and RoHS compliance for industrial use.

Product Specifications
Product Details | 2 Pin | 3 Pin | 4 Pin | 5 Pin
Pin number | 2 Pin | 3 Pin | 4 Pin | 5 Pin
Pin diameter X number | 1.2mm | 1.2mm | 1.2mm | 1.2+1.0mm
Current rating | 7A | 7A | 7A | 7A+2A
Voltage rating | 300V | 300V | 300V | 125V+60V
Withstanding voltage | 1500V | 1500V | 1500V | 1000V
Cable Gauge | 0.3mm²-1.0mm² (24-18AWG) | 0.3mm²-1.0mm² (24-18AWG) | 0.3mm²-1.0mm² (24-18AWG) | 0.3mm²-1.0mm² (24-18AWG)
Diameter Range | MAX φ8.5mm | MAX φ8.5mm | MAX φ8.5mm | MAX φ8.5mm
Protection Level | IP67 | IP67 | IP67 | IP67
Connecting mode | Push Locking | Push Locking | Push Locking | Push Locking
Flammability rating | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0
Operating temperature | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C | -40°C – 105°C
Certifications | ISO9001, CE, UL, RoHS | ISO9001, CE, UL, RoHS | ISO9001, CE, UL, RoHS | ISO9001, CE, UL, RoHS

Notes
Overmolded pre-molded cable assemblies designed for rapid deployment in actuator and sensor installations. A-coding conforms to M12 standard contact arrangement. Suitable for industrial automation applications requiring IP67 protection and common international certifications.

Technical specifications

• Series: M12
• Model type: 4-pin waterproof connector, A-coding
• Contact diameter: Φ1.2 mm copper alloy
• Current rating: 7 A (4-pin configuration)
• Voltage rating: 300 V
• Withstanding voltage: up to 1500 V
• Cable cross-section supported: 0.3 mm² to 1.0 mm² (24–18 AWG)
• Maximum cable outer diameter: MAX φ8.5 mm
• Protection level: IP67 (overmolded)
• Connecting mode: Push locking (tool-free)
• Operating temperature range: -40 °C to 105 °C
• Flammability rating: UL94-V0
• Certifications: ISO9001, CE, UL, RoHS, TUV (as applicable)
• Design features: integrated strain relief, pre-molded cable, >500 mating cycles
