Combined connector

dataelectrical power supplywire-to-wire

Product Overview

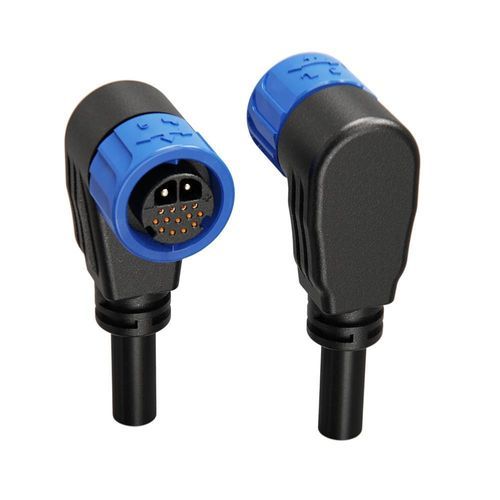

15‑pin M23 high‑density signal connector combining two 20A power contacts and thirteen 5A signal contacts in a waterproof IP67‑rated push‑lock housing for sensor networks and industrial data transmission.

Key Features

• High‑Density 15‑Pin Design – 2 power contacts (20A, φ2.4mm) and 13 signal contacts (5A, φ1.0mm) in a compact M23 housing to maximize connectivity in limited space.
• Push‑Locking Mechanism – Tool‑free quick connect/disconnect with self‑locking design for stable signal transmission in vibration‑prone environments.
• IP67 Waterproof & Dustproof – Fully sealed design protects contacts from moisture and dust; series offers IP68 and optional IP69K for more demanding washdown applications.
• Flexible Cable Installation – Supports cable cross‑sections from 0.3mm² to 6mm² (24–9 AWG) with maximum outer diameter up to φ16mm.
• Signal Integrity – Copper alloy contacts with gold/silver plating and UL94 V‑0 flame‑retardant housing for reliable, interference‑resistant transmission.
• Global Certifications – Models comply with UL, TUV, CE and RoHS; quality management per ISO9001.

Product Specifications (table view)
Product Details | Specification 1 | Specification 2 | Specification 3
Pin number | 6（2+4） Pin | 8（2+1+5） Pin | 15（2+13） Pin
Pin diameter X number | φ3.6+φ1.0 | φ3.6+φ2.0+φ1.0 | φ2.4+φ1.0
Current rating | 50A+5A | 50A+15A+5A | 20A+5A
Voltage rating | 300V+60V | 300V+125V+60V | 125V+60V
Withstanding voltage | 5000V | 3000V | 3000V
Cable Gauge | 0.3mm²–6mm² (24–9 AWG) | 0.3mm²–6mm² (24–9 AWG) | 0.3mm²–6mm² (24–9 AWG)
Diameter Range | MAX φ16mm | MAX φ16mm | MAX φ16mm
Protection Level | IP67 | IP67 | IP67
Connecting mode | Push Locking | Push Locking | Push Locking
Prevent the combustion level | UL94‑V0 | UL94‑V0 | UL94‑V0
Operating temperature | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃
Certification | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS

Applications & Advantages

• Suitable for sensor networks, industrial data transmission and combined power/signal connections where installation space is limited.
• Designed for harsh environments: waterproof/dustproof sealing, wide operating temperature range and high mating‑cycle durability (500+ mating cycles).
• Series options and customization available for higher ingress protection (IP68/IP69K) and high‑power variants.

Technical specifications

• Model: M23 15‑Pin
• Contact configuration: 2 power contacts + 13 signal contacts
• Power contact rating: 20A (φ2.4mm)
• Signal contact rating: 5A (φ1.0mm)
• Cable gauge supported: 0.3mm²–6mm² (24–9 AWG)
• Maximum cable diameter: φ16mm
• Protection level: IP67 (options for IP68/IP69K on some models)
• Voltage rating: 125V+60V (for 15‑pin variant)
• Withstanding voltage: 3000V (typical for 15‑pin variant)
• Housing flame‑retardant rating: UL94 V‑0
• Contact material and plating: copper alloy with gold/silver plating
• Connecting mode: Push Locking (tool‑free, self‑locking)
• Operating temperature: -40°C to +105°C
• Certifications: ISO9001, CE, UL, RoHS
• Mating durability: rated for 500+ mating cycles
