Electrical power supply connector
wire-to-boardcircularpush-to-lock

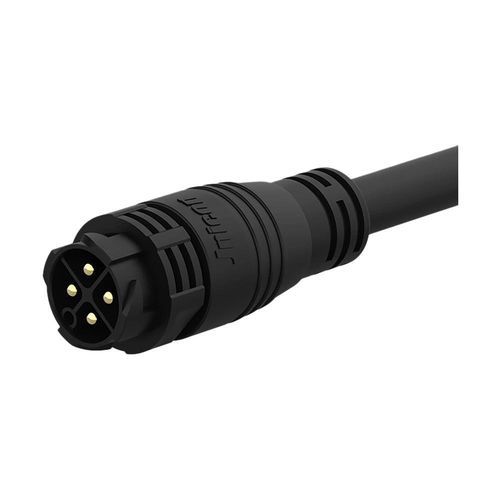

Electrical power supply connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-board / circular / push-to-lock
Electrical power supply connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-board / circular / push-to-lock
Electrical power supply connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-board / circular / push-to-lock - image - 2
Electrical power supply connector - Shenzhen Jnicon Technology Co., Ltd. - wire-to-board / circular / push-to-lock - image - 3
Add to favorites
Compare this product

Characteristics

Type
electrical power supply
Format
wire-to-board
Shape
circular
Connection type
push-to-lock
Size
M25
Electrical characteristics
3 pin, with 2 pins, 4 pin, 5 pin
Material
plastic, copper
Protection class
IP67
Norms
RoHS, cULus
Other characteristics
with cable, flame-retardant
Primary current

30 A, 50 A

Voltage

300 V, 500 V

Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 105 °C
(221 °F)

Description

Overview
  • 50A reliable power delivery — φ3.5mm copper alloy contacts support 50A at 500V, suitable for industrial machinery and outdoor LED power distribution.
  • Push-locking mechanism — tool-free quick connect/disconnect with self-locking design for stable connections in high-vibration environments.
  • IP67 waterproof & dustproof — fully sealed construction resists water, dust and oil; suitable for factory floors and outdoor installations.
  • Wide cable compatibility — supports 1.0mm²–6mm² (18–9 AWG) with max φ16mm outer diameter.
  • Durable construction — UL94 V-0 flame-retardant housing and operating range -40°C to 105°C for long-term reliability.
  • Global certifications — models certified to UL, TUV, CE and RoHS; factory certified ISO9001.


Product Details
Pin number: 2 Pin | 3 Pin | 4 Pin | 5 Pin
Pin diameter X number: φ3.5mm | φ3.5mm | φ3.5mm | 2.7mm
Current rating: 50A | 50A | 50A | 30A
Voltage rating: 500V | 500V | 500V | 300V
Withstanding voltage: 2500V | 2500V | 2500V | 1500V
Cable Gauge: 1.0mm²~6mm² (18~9 AWG) | 1.0mm²~6mm² (18~9 AWG) | 1.0mm²~6mm² (18~9 AWG) | 1.0mm²~6mm² (18~9 AWG)
Diameter Range: MAX φ16mm | MAX φ16mm | MAX φ16mm | MAX φ16mm
Protection Level: IP67 | IP67 | IP67 | IP67
Connecting mode: Push Locking | Push Locking | Push Locking | Push Locking
Prevent the combustion level: UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0
Operating temperature: -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃
Certification: ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS

Technical Specifications
  • Series / Model: M25
  • Contact material: copper alloy (φ3.5mm contacts on 2/3/4‑pin variants)
  • Rated current: up to 50A (varies by pin count)
  • Rated voltage: up to 500V (varies by pin count)
  • Withstanding voltage: up to 2500V
  • Cable cross-section supported: 1.0 mm² – 6 mm² (18 – 9 AWG)
  • Maximum cable outer diameter: φ16mm
  • Ingress protection: IP67 (sealed against dust and temporary immersion)
  • Locking method: Push‑locking (self‑locking)
  • Housing material: flame‑retardant engineering plastic, UL94 V‑0
  • Operating temperature range: -40℃ to 105℃
  • Mating durability: rated for 500+ mating cycles
  • Typical certifications: ISO9001, UL, TUV, CE, RoHS
