Data connector

wire-to-wirecircularlocking

Overview

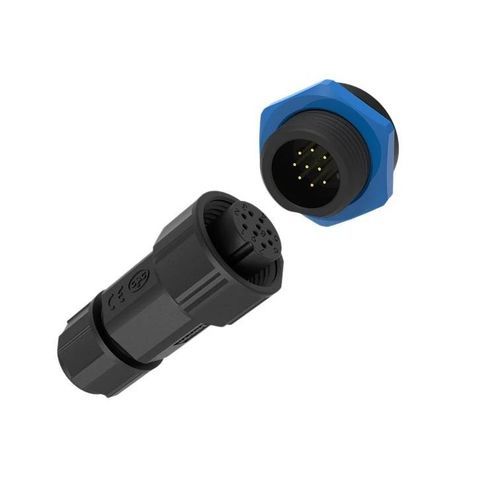

5A 9-pin push-locking waterproof signal connector (M19 series) with IP67 protection, designed for reliable data and signal transmission in sensor networks and industrial control systems.

Key Features

• 9-Pin Signal Density – Nine Φ1.0mm signal contacts rated 5A/60V to maximize wiring density in an M19 footprint.
• Push-Locking Mechanism – Tool-free push-lock mating for fast field installation and secure connections.
• IP67 Waterproof – Fully sealed against dust and temporary immersion to protect signal integrity.
• Versatile Applications – Suited for sensor arrays, encoders, fieldbus links and control cabinet field terminations.
• Certifications – ISO9001, CE, UL, RoHS compliance for industrial deployments.

Advantages

• Robust environmental protection – IP67 protection; IP69K available as an option for high-pressure/high-temperature washdown environments.
• Wide temperature range – Operational from -40℃ to +105℃ (some series variants up to +125℃ for energy-storage applications).
• Flame-retardant housing – UL94 V-0 rated engineering plastics for impact resistance and self-extinguishing properties.
• Long mating life – Designed and tested for 500+ mating cycles to ensure mechanical and electrical reliability.

Technical Specifications

• Series: M19 series
• Pin count: 9 Pin
• Contact diameter / type: Φ1.0mm signal contacts
• Current rating: 5A
• Voltage rating: 60V
• Withstanding voltage: 500V
• Cable gauge: 0.3mm² ~ 0.5mm² (24 ~ 20 AWG)
• Cable OD range: φ4.5 - φ11 mm
• Protection level: IP67 (sealed against water and dust)
• Coupling: Push-Locking (tool-free)
• Flammability: UL94-V0
• Operating temperature: -40℃ to 105℃
• Certifications: ISO9001, CE, UL, RoHS
• Mating cycles: 500+ (validated testing)
