Data connector

screw-lockedM168-pole

Product Summary

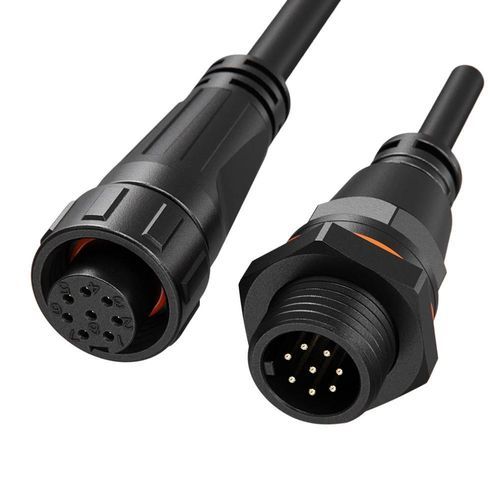

5A-rated M16 8-pin screw-lock signal connector with IP68 protection, designed for outdoor and industrial sensor networks. Available field-installable or molded-with-cable, with Φ1.0 mm contacts and global certifications to ensure reliable signal transmission in harsh environments.

Key Features

• 8-pin signal density: 8 signal contacts at 5A / 60V with Φ1.0 mm contacts in a compact M16 footprint.
• Screw-lock coupling: Threaded locking for secure, vibration-resistant connections.
• IP68 waterproofing: Fully sealed against dust and water for outdoor and industrial use.
• Flexible assembly: Field-installable or molded-with-cable options for on-site or factory wiring.
• Wide applications: Suited for sensor networks, encoders, fieldbus and control system signal connections.
• Certifications & quality: UL, TUV, CE, RoHS; manufactured in ISO9001 / IATF-capable facilities.

Specifications (table)
Product Details | Specification 1 | Specification 2 | Specification 3 | Specification 4 | Specification 5 | Specification 6 | Specification 7
Pin number | 2 Pin | 3 Pin | 4 Pin | 5 Pin | 2+4 Pin | 7 Pin | 8 Pin
Pin diameter X number | 1.5mm | 1.5mm | 1.5mm | 1.0mm | 1.5+1.0mm | 1.0mm | 1.0mm
Current rating | 10A | 10A | 10A | 8A | 10A+5A | 5A | 5A
Voltage rating | 300V | 300V | 125V | 125V | 125V+60V | 60V | 60V
Withstanding voltage | 1500V | 1500V | 1500V | 1500V | 500V | 500V | 500V
Cable Gauge | 0.5mm²-1.0mm² (20-18AWG) | 0.5mm²-1.0mm² (20-18AWG) | 0.5mm²-1.0mm² (20-18AWG) | 0.75+0.5mm² (18+20AWG) | 0.75+0.5mm² (18+20AWG) | 0.3mm²-0.5mm² (24-20AWG) | 0.3mm²-0.5mm² (24-20AWG)
Diameter Range | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm | MAX φ3.6mm
Protection Level | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68
Connecting mode | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking | Screw Locking
Prevent the combustion level | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0 | UL94-V0
Operating temperature | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃ | -40℃ – 105℃
Certification | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS | ISO9001, CE, UL, ROHS

Technical Specifications

• Series / Model family: M16 series
• Contact count: 8 pins (signal)
• Contact diameter: Φ1.0 mm
• Rated current (8-pin): 5A
• Rated voltage (8-pin): 60V
• Withstand voltage: 500V
• Cable gauge supported: 0.3 mm² – 0.5 mm² (24–20 AWG)
• Maximum cable outer diameter: MAX φ3.6 mm
• Ingress protection: IP68 (waterproof & dustproof)
• Coupling / locking: Screw locking (threaded coupling)
• Flame retardancy: UL94-V0
• Operating temperature range: -40°C to +105°C
• Assembly options: Field-installable or molded-with-cable
• Typical applications: Sensor networks, encoders, fieldbus systems, industrial control signal connections
• Certifications: ISO9001, CE, UL, RoHS (factory UL / TUV capability noted)
