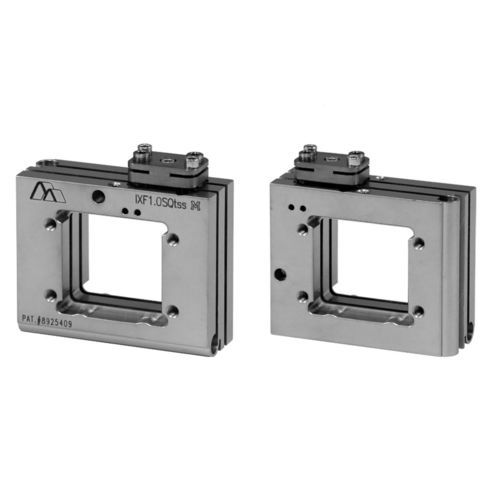

Mounting bracket IXF

The IXF.SQ series monolithic flexure mounts are the newest addition to the Siskiyou line of mounts specifically designed for OEM applications. These mounts offer versatile mounting options, including bulkhead mounting as either a front adjusted or through the bulkhead adjusted mount. Both versions are equipped with pre-tensioning locks on the adjustment screws to prevent unwanted motion.

Product Features

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and vacuum compatible versions available

Options

• Adjustment Location: Front Adjust or Top Adjust
• Axes of Adjustment: 2 axes
• Material: Stainless Steel (Aluminum option is disabled)
• Optic Size: 1.0in (0.50in and 2.0in options are disabled)

Characteristics / Technical Specifications

• Series: IXF.SQ
• Mounting: Bulkhead mounting (front or through bulkhead adjustment)
• Adjustment screws: Lockable, 100 threads per inch (TPI)
• Construction: Monolithic, one-piece
• Compatibility: UV and vacuum compatible versions available
• Axes: 2 axes of adjustment
• Material: Stainless Steel
• Optic Size: 1.0 inch square optic
• Pre-tensioning locks on adjustment screws
