Cable tie mount IVM

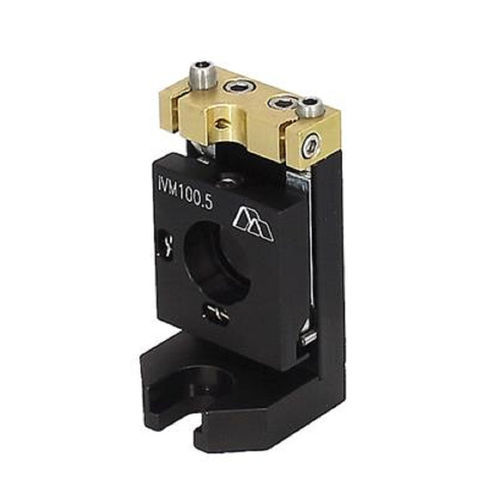

The IVM Series, Top-Adjust Kinematic Mounts are precision optical mounts designed for vertical or top-adjusted applications. These mounts feature a unique zero crosstalk system, ensuring true orthogonal motion between the X and Y axes. The spring-loaded pivot design provides exceptional stability, making these mounts among the most stable in the industry. Precision 100TPI adjustment screws offer excellent resolution and tactile feedback for fine adjustments.

Product Features

• Zero-crosstalk system for orthogonal X and Y axis motion
• 100TPI (threads per inch) adjustment screws for high-resolution control
• Unique spring-loaded pivot design for superior stability
• Vacuum compatible versions available upon request

Adjustment and Options

• Available with Hex Drive or Knob drive types
• Optic size options: 0.50 inch, 1.0 inch, and 2.0 inch

Characteristics / Technical Specifications

• Axes of Adjustment: TIP/TILT
• Drive Type: HEX DRIVE, KNOB
• Optic Size: 0.50IN, 1.0IN, 2.0IN
• Volume: 0.000000
• Weight UOM: LB
• Adjustment Screws: 100TPI
• Spring-loaded pivot for enhanced stability
• Zero crosstalk system
• Vacuum compatibility: available upon request
