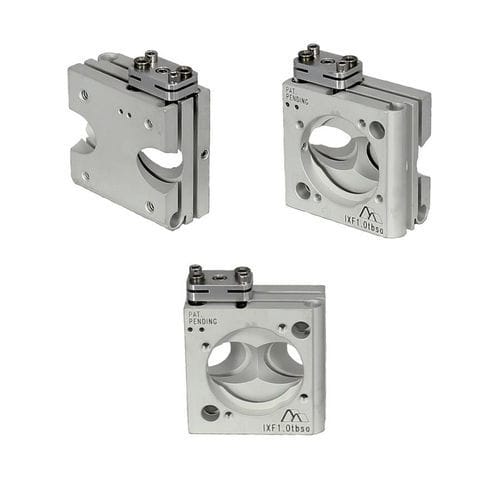

Mounting bracket IXFbs

Beamsplitter Flexure Mounts from the IXFbs series are derived from the popular IXF monolithic flexure mounts, featuring clear aperture cut-outs set at 45° to maximize beam clearance for beamsplitter applications. These mounts are available in both front-adjust and top-adjust configurations, providing flexibility for mounting in confined laser cavities and making them ideal for applications where accessibility is limited. The top adjustment mechanism includes a simple split-clamp lock for the 100TPI adjustment screws, which are best pre-loaded prior to adjustment and then locked in place. The design is protected under Patent No. 8,925,409.

Product Features

• Front or Top adjustable design
• Built-in 45° clear apertures
• Monolithic construction
• 100TPI lockable adjustment screws
• Vacuum and UV-compatible
• RoHS compliant

Characteristics / Technical Specifications

• Adjustment Location: Front Adjust or Top Adjust
• Material: Aluminum or Stainless Steel
• Mounting Angle: 90°
• Optic Size Options: 0.50 in, 0.75 in, 1.0 in, 2.0 in
• Unit of Measure: Metric
