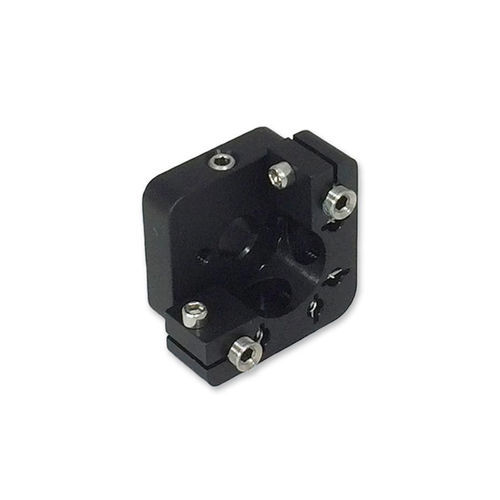

Heavy duty mounting bracket IM.P2

The IM.P2 Series Mount is an industrial grade kinematic optic mount designed for exceptional performance and flexibility in photonics applications. It features precision 100TPI adjustment screws, providing excellent resolution and tactile feedback. The solid 3/8-inch thick aluminum back plate offers two 8-32 [M4] mounting options, allowing for right or left-hand compatibility. The mount utilizes a full 'L' cutaway back for maximum clear aperture, and can be used with the OMH series optic holder or as a tip/tilt platform with tapped holes.

Product Features

• 100 pitch lockable adjustment screws
• Right and left-hand cutaway versions
• 3/8-inch thick back plate
• Vacuum compatible versions available upon request

Performance Specifications

• Travel per axis: 8°
• Minimum controllable motion: 8.6 arc sec (based on 1° of adjustment screw rotation)

Available Options

• Drive Type: HEX DRIVE
• Optic Sizes: .50IN, .75IN, 1.0IN
• Units of Measure: IMPERIAL, METRIC

Additional Information

• Back plate offers right or left-hand mounting
• Full 'L' cutaway for maximum aperture
• Can be used as a tip/tilt platform or with OMH series optic holder

Characteristics / Technical Specifications

• SKU: IM.P2 SERIES
• Drive Type: HEX DRIVE
• Optic Sizes: .50IN, .75IN, 1.0IN
• Units of Measure: IMPERIAL, METRIC
• Volume: 0.000000
• Weight UOM: LB
• Travel per axis: 8°
• Minimum controllable motion: 8.6 arc sec
