Mounting bracket IM05.P3

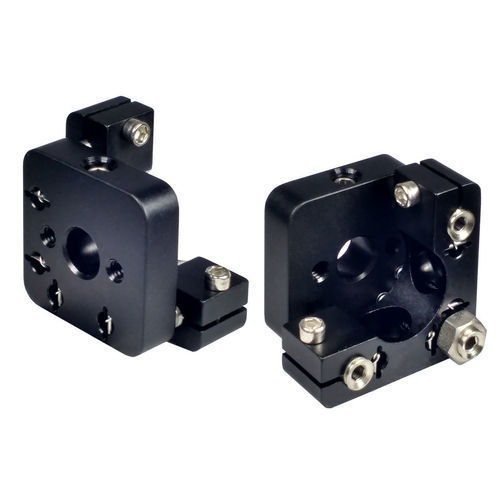

The IM05.P3 Series Mount is an industrial grade kinematic optic mount designed for exceptional performance and flexibility in optical setups. It features 3 precision 100TPI adjustment screws, providing excellent resolution and tactile feedback, making it ideal for laser cavity applications. The mount includes a solid 3/8-inch thick aluminum back plate with two 8-32 [M4] mounting options, allowing for both right or left hand compatibility. Its full 'L' cutaway back maximizes the clear aperture, and the IM05.C3 versions offer a cutaway front face for optimized tight beam layouts, available in both right and left hand versions. The IM05.P3 variant can be used with OMH series optic holders or as a tip/tilt/translate platform with tapped holes.

Product Features

• 3-axis 100 pitch lockable adjustment screws
• Right and left hand cutaway versions
• 3/8-inch thick back plate
• Vacuum compatible versions available upon request

Performance Specifications

• Travel per axis: 10°
• Travel Z / focus: 0.125 inches (3.1 mm)
• Minimum controllable motion: 8.6 arc seconds (based on 1° of adjustment screw rotation)

Characteristics / Technical Specifications

• Drive type: HEX DRIVE
• Optic size: PLATFORM
• Unit of measure: IMPERIAL and METRIC
• Volume: 0.000000
• Weight unit of measure: LB
• SKU: 66890000
