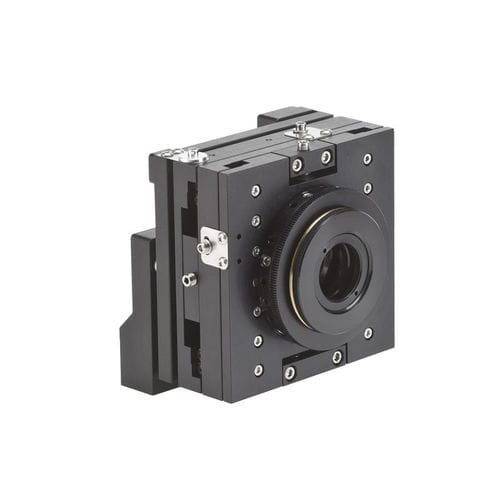

2-axis stage OTX

precisioncompactindustrial

The OTX Series Translator is an industrial lens positioner designed for precise adjustment of optics in demanding environments. This OEM version of the popular OT series features compact construction and incorporates crossed roller bearings to ensure zero crosstalk between X and Y axis adjustments. Precision rolled 100TPI adjustment screws enable submicron adjustment across the full travel of the X and Y axes, providing a smooth feel to the adjustment. All axes are equipped with foil locks, tested to 4g's, to maintain adjustment even in challenging conditions.

Product Features

• 100 pitch adjustment screws
• High precision crossed roller design
• All axes lockable

Performance Specifications

• Travel: X and Y axes: 0.125 inch (3 mm)
• Minimum controllable motion: X, Y axes: submicron

Characteristics / Technical Specifications

• OEM version of OT series
• Compact optical translator
• Zero crosstalk between X & Y axis adjustments
• Submicron adjustment capability
• Foil locks on all axes tested to 4g's
• Available options: UOM (Metric/Imperial), Axes of Adjustment (X-Y, X-Y-Z, X-Y-Z Tip/Tilt), Optic Size (.50in, 1.0in, 2.0in)
