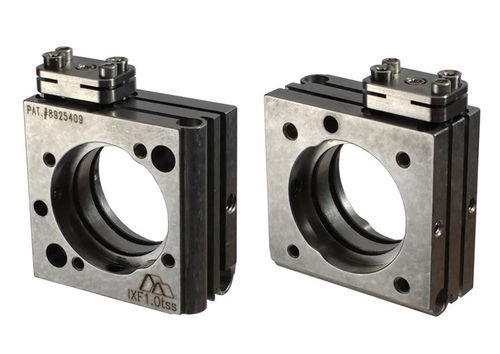

Mounting bracket IX F

The IXF series monolithic flexure mounts are specifically designed for OEM applications, offering a versatile solution for mounting optics. These mounts provide a wide variety of optic mounting options, including bulkhead mounting as either a front adjusted or through the bulkhead adjusted mount. Additionally, the mounts feature 8-32 (M4) or 1/4-20 (M6) mounting holes on two edges for post mounting and include locks on the adjustment screws for secure positioning.

Product Features

• Lockable 100TPI adjustment screws
• One-piece construction
• UV and vacuum compatible versions available

Options

• Adjustment Location: Front Adjust or Top Adjust
• Material: Aluminum or Stainless Steel
• Optic Size: .50in, .75in, 1.0in, 2.0in, 3.0in, 4.0in

Characteristics / Technical Specifications

• Mounting: Bulkhead (front or through bulkhead adjustment)
• Mounting holes: 8-32 (M4) or 1/4-20 (M6) on two edges
• Adjustment screws: Lockable, 100TPI
• Construction: One-piece
• Compatibility: UV and vacuum compatible versions available
• Available materials: Aluminum, Stainless Steel
• Available optic sizes: .50in, .75in, 1.0in, 2.0in, 3.0in, 4.0in
