Sensor mounting bracket EOP

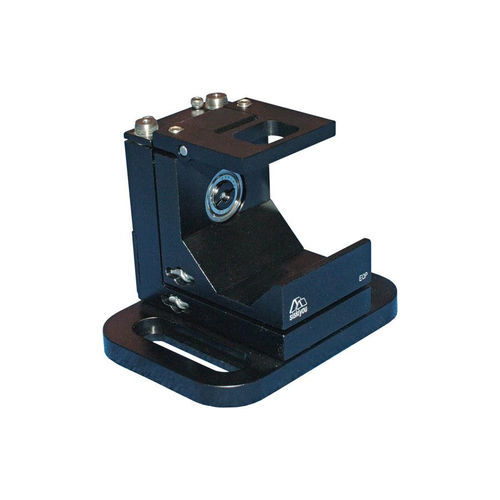

The EOP mount is engineered for optimal clearance on the clamping fork, maximizing the area around high-voltage power leads. It is specifically designed to position a variety of electro-optical devices, including HeNe lasers, laser modulators, and Pockels cells. Its compact form factor makes it ideal for applications where space is at a premium. The EOP mount provides 5° of tip/tilt adjustment using precision 100TPI adjustment screws, enabling highly accurate positioning of electro-optical devices. Non-influencing locks for both tip and tilt adjustments are integrated into the design, and both the locks and adjustment screws utilize the same 5/64 hex wrench for streamlined operation.

Product Features

• Lockable mechanism for secure positioning
• 100TPI (threads per inch) adjustment screws for fine control
• 5° tip/tilt adjustment capability
• UV-compatible versions available upon request
• Compatible with both U.S. and metric hole patterns

Performance Specifications

• Travel: Pitch 5°, Yaw 5°
• Minimum controllable motion: Pitch 5 arc seconds, Yaw 5 arc seconds (based on 1° of adjustment screw rotation)

Characteristics / Technical Specifications

• Axes of Adjustment: TIP/TILT
• SKU: 42140000E
• Volume: 0.000000
• Weight Unit of Measure: LB
