Mounting bracket OGX

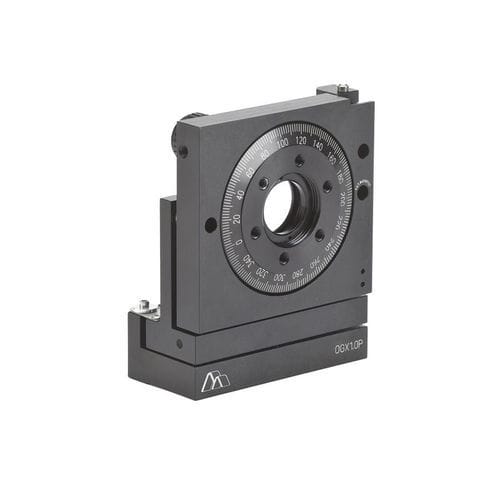

The OGX-1.0 gimbal mount offers the ultimate in stability and ease-of-adjustment in a true gimbal mount. With the reflective surface of the optic seated into the cavity, the mirror surface is at the axis of rotation for pitch and yaw motion.

Adjustable and lockable from above, this new series of mount provides maximum clear aperture in a gimbal mount and allows mounting in a component crowded setup. Based on the lock architecture of OTX optical translators, these mounts can take a 4G jolt without moving 5 microns, making them suitable for applications where long-term stability is specified. Siskiyou eXtreme gimbal mounts are optimized for extreme conditions.

Product Features

• 100 pitch adjustment screws
• 3-point optic mounting
• Maximized clear aperture
• Vacuum compatible versions available

Additional Information

• Minimum controllable motion: Based on 1° of adjustment screw rotation
• Choose options to see performance specifications and downloads

Characteristics / Technical Specifications

• Mount type: Gimbal mount
• Lockable and adjustable from above
• Maximum clear aperture
• 4G shock resistance (less than 5 microns movement)
• Available in metric and imperial units
• Optic size options: 1.0in, 2.0in
• Axes of adjustment: Pitch/Yaw, Pitch/Yaw Polarizing
• Vacuum compatible versions available
