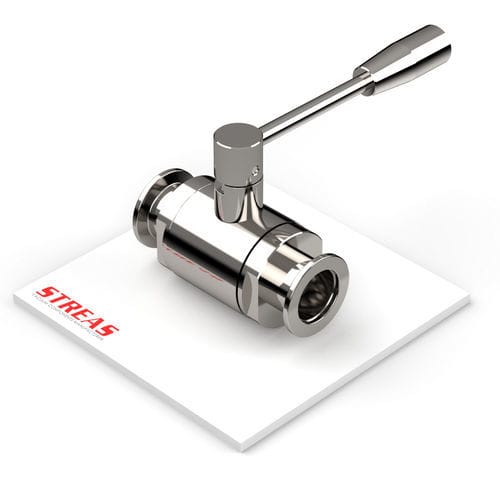

Ball valve VML series

levermanualflange

Manual inline ball valve equipped with AISI 304 flanges and Teflon® seals. Natural finish.

Main details

• Line: KF
• Line type: KF
• Product type: Valves
• Finish: Natural
• Materials: flanges in AISI 304, seals in Teflon®
• Actuation: Manual

Available variants / items

• VML10KF-S-4/PTFE — Materials: AISI 304; Finish: Natural; DN: 10; A: 30 mm (1.181 in); B: 80 mm (3.15 in); C: 146 mm (5.748 in)
• VML16KF-S-4/PTFE — Materials: AISI 304; Finish: Natural; DN: 16; A: 30 mm (1.181 in); B: 80 mm (3.15 in); C: 146 mm (5.748 in)
• VML25KF-S-4/PTFE — Materials: AISI 304; Finish: Natural; DN: 25; A: 40 mm (1.575 in); B: 100 mm (3.937 in); C: 186 mm (7.323 in)
• VML40KF-S-4/PTFE — Materials: AISI 304; Finish: Natural; DN: 40; A: 55 mm (2.165 in); B: 130 mm (5.118 in); C: 226 mm (8.898 in)
• VML50KF-S-4/PTFE — Materials: AISI 304; Finish: Natural; DN: 50; A: 75 mm (2.953 in); B: 140 mm (5.512 in); C: 231 mm (9.094 in)

Features / technical specifications

• Body and flanges: AISI 304
• Seals: Teflon®
• Finish: Natural
• Operation: Manual (lever/knob)
• Series / designation: KF
• Available sizes (DN): 10, 16, 25, 40, 50
