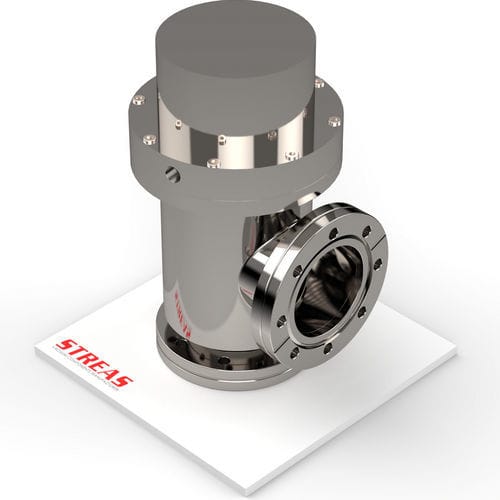

Pneumatic valve VPA seriesright-angleT-shapedwith obturator
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Body
- T-shaped, right-angle
- Other characteristics
- ISO, with bellows seal, with connection, with obturator
- DN
16 mm, 38 mm, 63 mm
(0.63 in, 1.496 in, 2.48 in)- Temperature
Min.: -200 °C
(-328 °F)Max.: 860 °C
(1,580 °F)
Description
Pneumatic valve with bellows plug, actuated pneumatically; the 90° angle allows replacement with an elbow or tee fitting. Valve body in AISI 304 and seals in Fluoroelastomer (FKM), natural finish.
Variants / Available items:
Features / Technical specifications:
Variants / Available items:
- VPA16CF-OS-4/FKM
- Materials: Not defined
- Finish: Natural
- DN: 16
- Dimensions: A = 61.8 mm (2.433 in), B = 92 mm (3.622 in), C = 162 mm (6.378 in)
- Availability: Medium
- VPA38CF-OS-4/FKM
- Materials: Not defined
- Finish: Natural
- DN: 38
- Dimensions: A = 67 mm (2.638 in), B = 105 mm (4.134 in), C = 190 mm (7.48 in)
- Availability: Medium
- VPA63CF-OS-4/FKM
- Materials: Not defined
- Finish: Natural
- DN: 63
- Dimensions: A = 88 mm (3.465 in), B = 159 mm (6.26 in), C = 243 mm (9.567 in)
- Availability: Medium
Features / Technical specifications:
- Type: 90° angle pneumatic valve with bellows plug
- Line: CF
- Body: AISI 304
- Seals: Fluoroelastomer (FKM)
- Actuation: pneumatic
- Finish: Natural
- Compatible with elbow or tee fittings for replacement
- Technical and commercial documentation available (product sheet and technical datasheet in PDF)
