Manual valve VMA series
right-anglein-linewith bellows seal

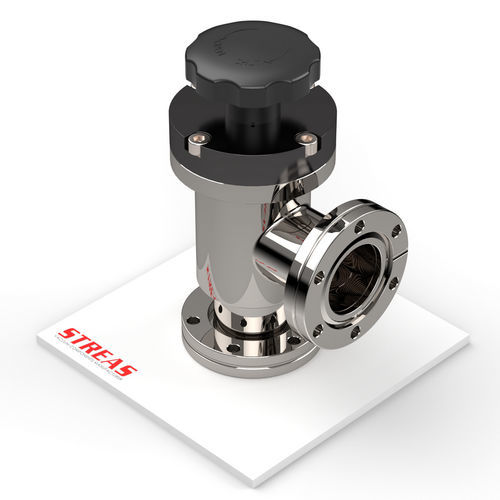

Manual valve - VMA series - Streas srl - right-angle / in-line / with bellows seal
Manual valve - VMA series - Streas srl - right-angle / in-line / with bellows seal
Manual valve - VMA series - Streas srl - right-angle / in-line / with bellows seal - image - 2
Add to favorites
Compare this product
Go to the Streas srl website for more information

Characteristics

Operation
manual
Body
in-line, right-angle
Other characteristics
with bellows seal
DN

16 mm, 38 mm, 63 mm, 100 mm
(0.63 in, 1.496 in, 2.48 in, 3.937 in)

Temperature

Min.: -200 °C
(-328 °F)

Max.: 860 °C
(1,580 °F)

Description

Manually operated bellows-sealed valve, 90° angle, designed for the CF line.

Details
  • Line: CF
  • Line type: CF
  • Product type: Valves


Available items
  • Code: VMA16CF-OS-4/FKM — DN: 16 — A: 61.8 mm (2.433 in) — B: 93 mm (3.661 in) — C: 111 mm (4.370 in) — Availability: High
  • Code: VMA38CF-OS-4/FKM — DN: 38 — A: 67 mm (2.638 in) — B: 105 mm (4.134 in) — C: 162 mm (6.378 in) — Availability: High
  • Code: VMA63CF-OS-4/FKM — DN: 63 — A: 87.5 mm (3.445 in) — B: 158 mm (6.22 in) — C: 300 mm (11.811 in) — Availability: High
  • Code: VMA100CF-OS-4/FKM — DN: 100 — A: 108 mm (4.252 in) — B: 191 mm (7.52 in) — C: 250 mm (9.843 in) — Availability: Medium


Features / technical specifications
  • Operation: manual
  • Angle: 90° (allows replacement with an elbow or tee fitting)
  • Body: AISI 304
  • Seals: Fluoroelastomer (FKM / Viton)
  • Finish: Natural
  • Available sizes (DN): 16, 38, 63, 100
