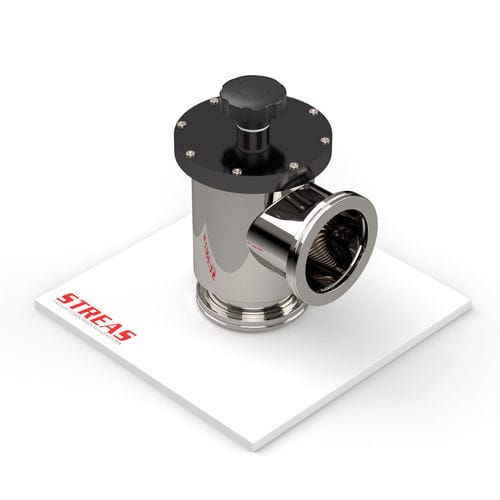

Manual valve VMA seriesflow controlright-anglewith ISO flange connections
Add to favorites
Compare this product
Characteristics
- Operation
- manual
- Function
- flow control
- Body
- with ISO flange connections, in-line, right-angle
- Applications
- flange
- Material
- stainless steel
- Other characteristics
- ISO, DIN, with bellows seal, with obturator
- DN
63 mm, 100 mm
(2.48 in, 3.937 in)- Temperature
Max.: 860 °C
(1,580 °F)Min.: -200 °C
(-328 °F)
Description
Manual 90° ISO-K valve with bellows shutter, designed for manual flow control in systems with ISO-K flanges. The 90° angle allows replacement with elbow or tee fittings; body in AISI 304 and seals in fluoroelastomer (FKM).
Available items:
Features / technical specifications:
Available items:
- VMA63ISOK-OS-4/FKM: Materials: AISI 304 and FKM (Viton); Finish: Natural; DN: 63; Dimensions: A = 88 mm (3.465 inch), B = 158 mm (6.22 inch), C = 248 mm (9.764 inch); Availability: High.
- VMA100ISOK-OS-4/FKM: Materials: AISI 304 and FKM (Viton); Finish: Natural; DN: 100; Dimensions: A = 108 mm (4.252 inch), B = 191 mm (7.52 inch), C = 273 mm (10.748 inch); Availability: High.
Features / technical specifications:
- Line: ISO-K
- Line type: ISO
- Product type: Manual valves
- Shutter type: Bellows (bellows shutter)
- Operation: Manual
- Body: AISI 304
- Seals: Fluoroelastomer (FKM, Viton)
- Finish: Natural
- Angle: 90° (allows replacement with elbow or tee)
- Article codes: VMA63ISOK-OS-4/FKM, VMA100ISOK-OS-4/FKM
