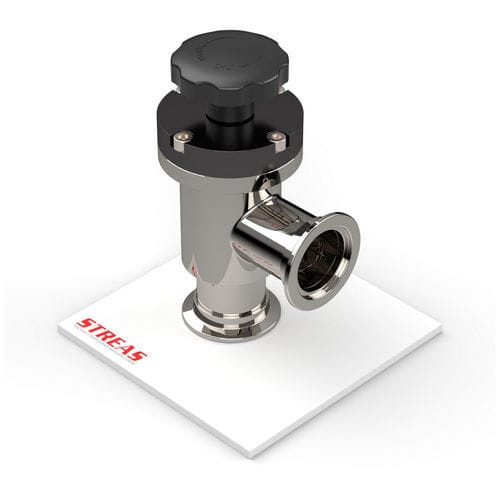

Manual valve VMA series

right-anglefor vacuumstainless steel

Manually operated valve with bellows shutter; the 90° angle allows replacement with an elbow or tee fitting.

Product details:

• Line: KF
• Line type: KF
• Type: Valves
• Finish: Natural

Available items (summary):

• VMA16KF-OS-4/FKM — DN 16; A: 40 mm (1.575 in); B: 70 mm (2.756 in); C: 113 mm (4.449 in); Availability: High
• VMA25KF-OS-4/FKM — DN 25; A: 50 mm (1.969 in); B: 80 mm (3.150 in); C: 164 mm (6.457 in); Availability: High
• VMA40KF-OS-4/FKM — DN 40; A: 65 mm (2.559 in); B: 103 mm (4.055 in); C: 168 mm (6.614 in); Availability: High
• VMA50KF-OS-4/FKM — DN 50; A: 70 mm (2.756 in); B: 115 mm (4.528 in); C: 175 mm (6.890 in); Availability: High

Features / technical specifications:

• Operation: Manual
• Shutter type: Bellows
• Angle: 90° (compatible for replacement with elbow or tee)
• Body: AISI 304
• Seals: Fluoroelastomer (FKM / Viton)
• Product line: KF
• Finish: Natural
• Available codes: VMA16KF-OS-4/FKM, VMA25KF-OS-4/FKM, VMA40KF-OS-4/FKM, VMA50KF-OS-4/FKM
