Diaphragm valve VML seriesmanualregulatingin-line
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- manual
- Function
- regulating
- Body
- in-line
- Applications
- for pipes
- Material
- aluminum, nitrile rubber
- Other characteristics
- with seal
- DN
Min.: 10 mm
(0.394 in)Max.: 25 mm
(0.984 in)
Description

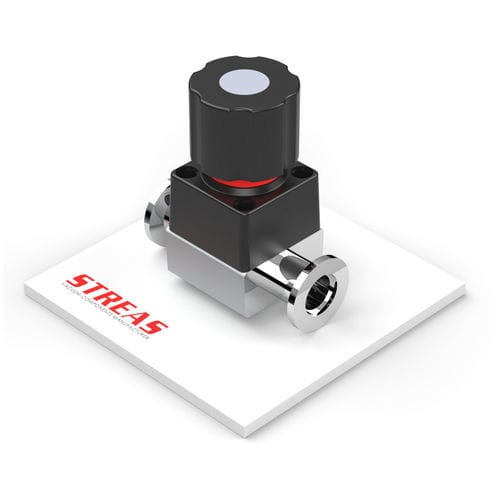

Inline valve with a manually operated diaphragm shutter, suitable for flow regulation in small-diameter lines. Valve body in aluminum and seals in Nitrile-butadiene (NBR).
Available items:
Features / technical specifications:
Available items:
- Code: VML10KF-M-A/NBR
- Materials: Not defined
- Finish: Natural
- DN: 10
- A: 30 mm (1.181 inch)
- B: 90 mm (3.543 inch)
- C: 80 mm (3.15 inch)
- Code: VML16KF-M-A/NBR
- Materials: Not defined
- Finish: Natural
- DN: 16
- A: 30 mm (1.181 inch)
- B: 90 mm (3.543 inch)
- C: 80 mm (3.15 inch)
- Code: VML25KF-M-A/NBR
- Materials: Not defined
- Finish: Natural
- DN: 25
- A: 40 mm (1.575 inch)
- B: 140 mm (5.512 inch)
- C: 100 mm (3.937 inch)
Features / technical specifications:
- Line: KF
- Line type: KF
- Product type: Valves (diaphragm valve, manual operation)
- Finish: Natural
- Body material: Aluminum
- Seals: NBR (Nitrile-butadiene)
- Application: Flow regulation in small-diameter lines
- Available sizes (DN): 10, 16, 25
- Technical files available: commercial product sheet and technical datasheet (PDF)
