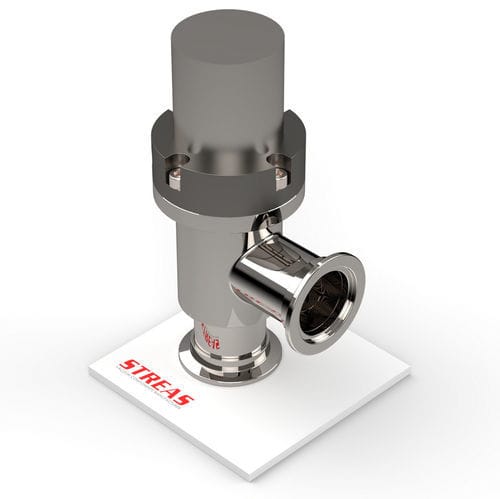

Pneumatic valve VPA seriesright-angleT-shapedstainless steel
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Body
- T-shaped, right-angle
- Material
- stainless steel
- Other characteristics
- with bellows seal, with connection
- DN
16 mm, 40 mm, 50 mm
(0.63 in, 1.575 in, 1.969 in)- Temperature
Max.: 860 °C
(1,580 °F)Min.: -200 °C
(-328 °F)
Description
Product overview
Bellows-sealed pneumatic valve designed for KF connections with a 90° orientation to allow replacement with an elbow or tee fitting.
Available items:
Features / technical specifications:
Bellows-sealed pneumatic valve designed for KF connections with a 90° orientation to allow replacement with an elbow or tee fitting.
Available items:
- VPA16KF-OS-4/FKM
- Materials: Not defined
- Finish: Natural
- DN: 16
- Dimensions: A = 62 mm (2.441 inch), B = 95 mm (3.74 inch), C = 170 mm (6.693 inch), D = -, E = -, F = -
- VPA25KF-OS-4/FKM
- Materials: Not defined
- Finish: Natural
- DN: 25
- Dimensions: A = 50 mm (1.969 inch), B = 87 mm (3.425 inch), C = 152 mm (5.984 inch), D = -, E = -, F = -
- VPA40KF-OS-4/FKM
- Materials: Not defined
- Finish: Natural
- DN: 40
- Dimensions: A = 69 mm (2.717 inch), B = 107 mm (4.213 inch), C = 192 mm (7.559 inch), D = -, E = -, F = -
- VPA50KF-OS-4/FKM
- Materials: Not defined
- Finish: Natural
- DN: 50
- Dimensions: A = 86 mm (3.386 inch), B = 125 mm (4.921 inch), C = 220 mm (8.661 inch), D = -, E = -, F = -
Features / technical specifications:
- Line: KF
- Product type: Valves
- Operation: Pneumatic
- Angle: 90° (for replacement with elbow or tee fittings)
- Body: AISI 304
- Seals: Fluoroelastomer (FKM)
- Finish: Natural
