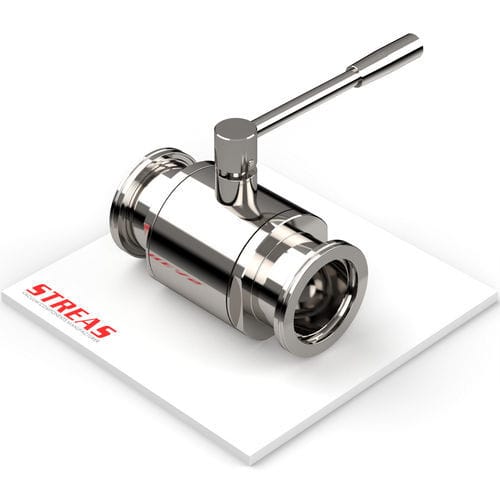

Ball valve VML series
manualin-linewith ISO flange connections

Ball valve - VML series - Streas srl - manual / in-line / with ISO flange connections
Ball valve - VML series - Streas srl - manual / in-line / with ISO flange connections
Ball valve - VML series - Streas srl - manual / in-line / with ISO flange connections - image - 2
Add to favorites
Compare this product
Go to the Streas srl website for more information

Characteristics

Type
ball
Operation
manual
Body
in-line, with ISO flange connections, flange
Applications
for vacuum
Material
stainless steel, PTFE
Other characteristics
ISO
DN

Max.: 100 mm
(3.937 in)

Min.: 63 mm
(2.48 in)

Description

Inline manual ball valve for ISO-K flanges, designed to ensure handling and sealing in vacuum applications. The product is available in multiple sizes (DN) with AISI 304 flanges and variants with Teflon® (PTFE) seals.

Available items
  • VML63ISOK-S-4/PTFE — DN 63; Materials: AISI 304; Finish: Natural; Dimensions: A = 95 mm (3.74 in), B = 176 mm (6.929 in), C = 330 mm (12.992 in); Availability: High
  • VML80ISOK-S-4/PTFE — DN 80; Materials: AISI 304; Finish: Natural; Dimensions: A = 110 mm (4.331 in), B = 227 mm (8.937 in), C = 352 mm (13.858 in); Availability: High
  • VML100ISOK-S-4/PTFE — DN 100; Materials: AISI 304; Finish: Natural; Dimensions: A = 130 mm (5.118 in), B = 215 mm (8.465 in), C = 390 mm (15.354 in); Availability: High


Features / technical specifications
  • Line: ISO-K
  • Line type: ISO
  • Product type: Inline manual ball valve
  • Seals: Teflon® (PTFE)
  • Actuation: Manual
  • Documentation: commercial datasheet and technical datasheet in PDF available
