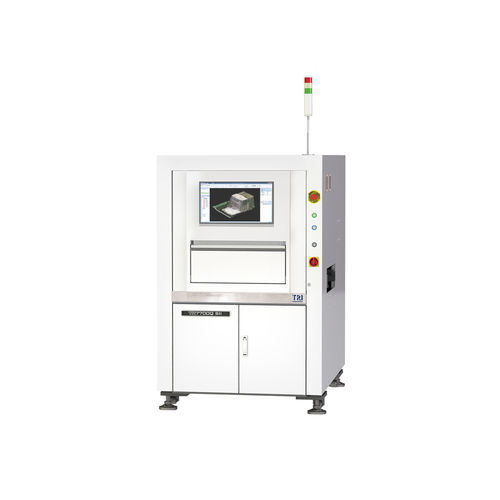

Optical inspection system TR7700Q SII

video visioncamera3D

Introduction
The TR7700Q SII is powered by TRI's Smart Programming with auto-learning functionalities, flexible inspection algorithms, and metrology capabilities for exact measurements and data exchange for Smart Factory applications. The TR7700Q SII uses Stop-and-Go imaging technology providing higher accuracy and improved Gauge R&R.

Features

• Industry-leading inspection speed, up to 57 cm²/sec
• Multiple 3D technologies including zero-escape inspection
• High-accuracy inspection with improved Gauge R&R

Optical System
Imaging Method: Stop-and-Go
Top Camera: 12 MP / 21 MP high-speed camera
Angle Camera: N/A
Imaging Resolution (factory settings): 9.8 µm, 10 µm, 12 µm, 15 µm
Lighting: Multi-phase True Color LED
3D Technology: Quad digital fringe projectors
Max. 3D Range:
@ 9.8 μm: 40 mm
@ 10 μm: 40 mm
@ 12 μm: 40 mm
@ 15 μm: 40 mm

Inspection Performance
Imaging Speed:
@ 9.8 μm: 40 cm²/sec
@ 10 μm: 25 cm²/sec
@ 12 μm: 37 cm²/sec
@ 15 μm: 57 cm²/sec

Motion Table & Control
X-Axis Control: Ballscrew + AC servo with motion controller
Y-Axis Control: Ballscrew + AC servo with motion controller
Z-Axis Control: Ballscrew + AC servo with motion controller
X-Y Axis Resolution: 1 μm

Board Handling
Max PCB Size:
TR7700Q SII: 510 x 460 mm
TR7700LQ SII: 765 x 610 mm
TR7700Q SII DL: 510 x 310 mm x 2 lanes, 510 x 590 mm x 1 lane
PCB Thickness: 0.6–5 mm
Max PCB Weight:
TR7700Q SII: 3 kg (optional 5 kg)
TR7700LQ SII: 3 kg (optional 5 kg / 12 kg)
TR7700Q SII DL: 3 kg (optional 5 kg)
Top Clearance:
@ 9.8 μm: 50 mm
@ 10 μm: 50 mm
@ 12 μm: 50 mm
@ 15 μm: 50 mm
Bottom Clearance: 40 mm
Edge Clearance: 3 mm (optional 4 mm / 5 mm)
Conveyor Inline Height: 880–920 mm (optional 940–965 mm SMEMA compatible)

Inspection Functions

• Component: Missing, Tombstoning, Billboarding, Polarity, Rotation, Shift, Wrong Marking (OCV), Defective, Upside Down, Extra Component, Foreign Material, Lifted Component
• Solder: Solder fillet height, Solder volume %, Excess solder, Insufficient solder, Bridging, Through-hole pins, Lifted lead, Golden finger scratch/contamination

Dimensions
WxDxH:
TR7700Q SII: 1100 x 1720 x 1710 mm
TR7700LQ SII: 1365 x 1720 x 1710 mm
TR7700Q SII DL: 1100 x 1820 x 1710 mm
Note: dimensions do not include signal tower (signal tower height 515 mm)
Weight:
TR7700Q SII: 910 kg
TR7700LQ SII: 1025 kg
TR7700Q SII DL: 960 kg

Technical specifications

• Model: TR7700Q SII
• Brand: Test Research, Inc. (TRI)
• Imaging Method: Stop-and-Go
• Top Camera: 12 MP / 21 MP high-speed camera
• Imaging Resolutions (factory settings): 9.8 µm, 10 µm, 12 µm, 15 µm
• 3D Technology: Quad digital fringe projectors
• Max. 3D Range: 40 mm (for 9.8 / 10 / 12 / 15 µm)
• Imaging Speed: up to 57 cm²/sec (at 15 µm); other speeds: 40 / 25 / 37 cm²/sec depending on resolution
• Lighting: Multi-phase True Color LED
• X-Y Axis Resolution: 1 μm
• PCB Size (max): 510 x 460 mm (TR7700Q SII); up to 765 x 610 mm for TR7700LQ SII; DL variants support lanes as specified
• PCB Thickness: 0.6–5 mm
• Max PCB Weight: typically 3 kg (optional up to 5 kg or 12 kg depending on model)
• Top Clearance: 50 mm (typical)
• Bottom Clearance: 40 mm
• Conveyor Inline Height: 880–920 mm (optional 940–965 mm SMEMA compatible)
