Product Overview

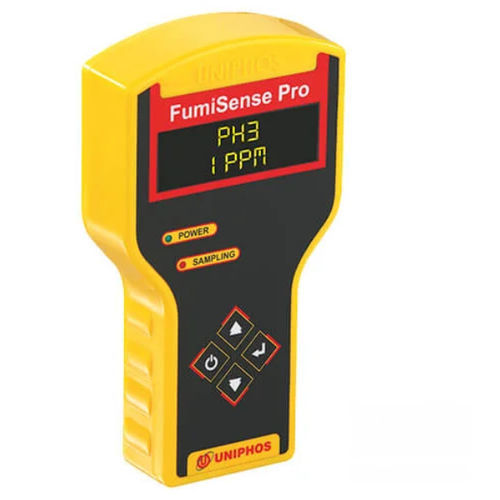

FumiSense Pro PH3-Hi is a handheld phosphine (PH3) gas monitor designed to verify fumigation concentrations inside stacks, silos and ships. It features an inbuilt air sampling pump capable of drawing a sample from up to 30 m and an electrochemical sensor measuring up to 2000 ppm (optionally 5000 ppm). The backlit 20×4 OLED display provides clear readings in low light. The device supports user-configurable datalogging with date, time, warehouse/silo location and USB data transfer via supplied GUI.

Key Features

• Measurement ranges: 0–2000 ppm (standard) and optional 0–5000 ppm
• Resolution: 1 ppm (low range) and 10 ppm (high range)
• 20×4 backlit OLED display and inbuilt sampling pump (sample draw up to 30 m)
• Continuous and batch sampling modes; pump 400–800 ml/min
• User-settable alarm set point (low-range detectors)
• Onboard data logging with gas concentration, warehouse/silo number, date & time
• USB interface and PC GUI for data download, sorting and report generation
• Soft power start and function keys: UP, DOWN, SET & ENTER

Technical Specifications

• Gas detected: Phosphine (PH3)
• Sensor type: Electrochemical
• Accuracy: approx. ±2% FS (dependent on calibration)
• Signal drift: <2% per month at constant conditions
• Power: 7.4 V Li‑ion rechargeable battery; runtime ~6–8 hours; power consumption 3.5 V DC, 60 mA
• Inbuilt pump flow rate: 400–800 ml/min
• Data transfer: USB communication; GUI for data handling
• Operating temperature: -20 °C to 50 °C
• Display: 20×4 alphanumeric OLED, backlit
• Enclosure: High impact ABS
• Dimensions: H 205 mm × D 38 mm × W 108/65 mm
• Weight: 500 g
• Accessories supplied: Dust filter, battery charger, data downloading cable, outlet coupler

Applications & Notes

• Designed for monitoring phosphine fumigation in grain storage, silos, warehouses and ships
• Records concentration, location and time for traceability and compliance
• Calibration and measurement accuracy depend on calibration gas and procedure
