Gas detector tube MBr

Overview

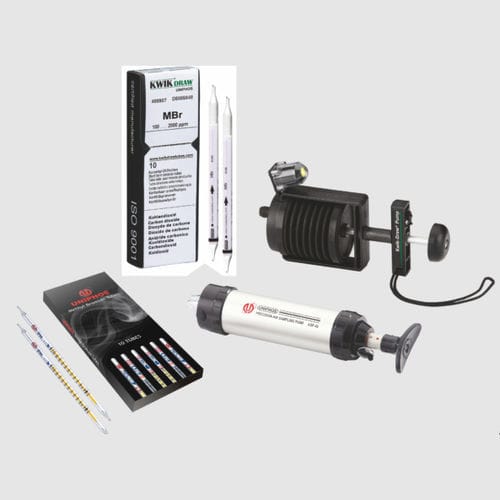

Colorimetric gas detector tubes are sealed glass tubes containing a specific reagent that changes color when exposed to target gases. Air is drawn through the tube with a compatible sampling pump; the length of the resulting stain is proportional to the gas concentration and is read against the tube scale. MBr (Methyl Bromide) detector tubes provide quick spot measurements for fumigation monitoring and leak detection. Tubes are available in Uniphos (thick/thin) and KwikDraw (thin) formats and cover low-level to high-level ranges from 0.2 ppm up to several thousand ppm depending on the tube model.

Applications

• Spot checks and leak detection in fumigated structures and storage areas to support worker safety and operational control.
• On-site verification during fumigation, remediation or compliance inspections.

Features

• Pre-calibrated, single-use colorimetric tubes
• Wide measurement range across tube variants
• No routine maintenance required (consumable product)
• Lightweight and portable for field use
• Uniphos tubes compatible with ASP-40 air sampling pump
• KwikDraw tubes compatible with KwikDraw Deluxe Pump

Gas list / Tube types (table)
Methyl Bromide (DB) | Standard Range | Extended Range | Tube Name | Ordering Code | Data Sheet | MSDS
Methyl Bromide (DB) | 1 – 18 ppm | 0.5 – 36 ppm | SMB – 2M | CF000100 | SMB-2M (datasheet available) | U070011000 (MSDS available)
Methyl Bromide (DB) | 10 – 100 ppm | 5 – 200 ppm | SMB – 3 | CF000101 | SMB-3 (datasheet available) | U070011000 (MSDS available)
Methyl Bromide (DB) | 20 – 300 ppm | 10 – 600 ppm | SMB – 4M | CF000102 | SMB-4M (datasheet available) | U070011000 (MSDS available)
Methyl Bromide (DB) | 50 – 1000 ppm | 25 – 2000 ppm | SMB – 4 | CF000103 | SMB-4 (datasheet available) | U070011000 (MSDS available)

KwikDraw Detector Tubes (table)
Substance | Standard Range | Tube Name | Ordering Code | Data Sheet / MSDS available
Methyl Bromide | 2 – 100 ppm | Methyl Bromide-2 | 710391 | datasheet & MSDS available
Methyl Bromide | 200 – 8000 ppm | Methyl Bromide-200 | 710544 | datasheet & MSDS available
Methyl Bromide | 0.2 – 8 ppm | Methyl Bromide-0.2 | (ordering code shown) | datasheet & MSDS available

Downloads
Product datasheets, tube-specific datasheets and MSDS files are available for each listed tube type; consult the relevant datasheet references and ordering codes above.

Technical specifications

• Product family: MBr (Methyl Bromide) gas detector tubes
• Measurement ranges: examples include 0.2–8 ppm, 1–18 ppm, 10–100 ppm, 20–300 ppm, 50–1000 ppm, 200–8000 ppm
• Tube types: Uniphos (thick/thin) and KwikDraw (thin)
• Tube names/codes: SMB – 2M, SMB – 3, SMB – 4M, SMB – 4, Methyl Bromide-2, Methyl Bromide-200, Methyl Bromide-0.2
• Ordering codes (examples): CF000100, CF000101, CF000102, CF000103, 710391, 710544
• Compatibility: Uniphos tubes — ASP-40 air sampling pump; KwikDraw tubes — KwikDraw Deluxe Pump
• Calibration: pre-calibrated, single-use colorimetric tubes
• Maintenance: maintenance-free consumables
