Vibration personal monitor MBr KwikAlert

with data logger

Overview

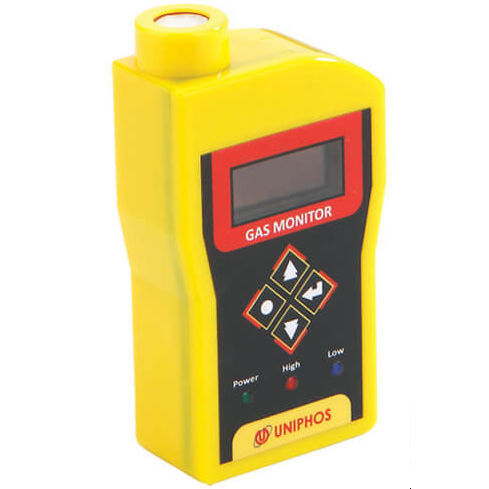

The Uniphos KwikAlert is a compact single‑gas, diffusion‑based personal monitor for continuous monitoring of Methyl Bromide (MBr) in occupational environments. It features a high‑contrast OLED display showing real‑time concentration and user‑configurable audible and visual alarms. Built‑in data logging supports TWA and STEL assessment and traceable record keeping.

Key points

• Specifically designed for detection and monitoring of Methyl Bromide (MBr) in industrial and fumigation settings.
• Continuous concentration readout on an 8×2 alphanumeric OLED display.
• User‑settable audible (85 dB) and visual alarms; optional vibrational alarm available.
• Standard data logging with TWA/STEL, timestamp and USB data export.

Application

• Leak detection and area monitoring during fumigation and handling of Methyl Bromide.

Features

• Microcontroller‑based electronics with high‑contrast OLED display.
• Measurement range: 0–200 ppm; resolution: 1 ppm.
• Solid‑state sensor technology for MBr detection; diffusion sampling.
• Data logging of gas concentration, TWA, date & time; USB wired interface for PC transfer.
• Audible (85 dB) and visual alarms (blue LED = Lo, red LED = Hi); optional vibrational alarm; configurable TWA/STEL alarms.
• Power: 7.4 V Li‑ion rechargeable battery pack — runtime 7–8 hours (full charge).
• Enclosure: ABS plastic; Ingress Protection: IP65; Weight: approx. 300 g; Size: H 135 × W 70 × D 35 mm.

Gas List (summary)
Gas Name | Model No | Ordering Code | Range | Resolution | Sensor Technology | Data Sheet
Methyl Bromide | 351M | EF000588 | 0–200 ppm | 1 ppm | SS (Solid State) | PDF available

Downloads (listed on page)
Fumigation Brochure (PDF)
Data sheet for model 351M (PDF)

Technical specifications

• Gas: Methyl Bromide
• Range: 0–200 ppm
• Resolution: 1 ppm
• Sensor: Solid‑state sensor
• Accuracy: ±2% (dependent on calibration gas and method)
• Drift: <2% of signal per month at constant conditions
• Sampling: Diffusion
• Alarms: User‑settable Lo (blue LED), Hi (85 dB + red LED), optional vibrational; TWA and STEL alarms configurable
• Data logging: Standard — logs concentration with date & time
• Power source: 7.4 V Li‑ion rechargeable battery pack
• Runtime: 7–8 hours (full charge)
• Data transfer: USB wired instrument‑to‑PC
• Controls: 4 function keys for operation, settings & calibration
• Operating temperature: 0 to 40 °C
• Display: 8×2 alphanumeric OLED (high contrast)
• Enclosure: ABS plastic
• Ingress Protection: IP65
• Size: H 135 mm × W 70 mm × D 35 mm
• Weight: approx. 300 g
• Certification: CIMFR & CCOE (PESO) approval: Ex ib IIA IIB T4; CE
