PH3 phosphine sensor FumiGuardelectrochemicalmonitoringfor industrial gas safety monitoring
Add to favorites
Compare this product
Characteristics
- Gas type
- PH3
- Technology
- electrochemical
- Applications
- monitoring, for industrial gas safety monitoring, for food storage
- Output
- Modbus, Modbus RTU, RS-485, USB, wireless, 3G
- Other characteristics
- smart, remote, online, for real-time measuring
- Measuring range (ppm)
Max.: 20 unit
Min.: 0 unit
Description
Product Overview

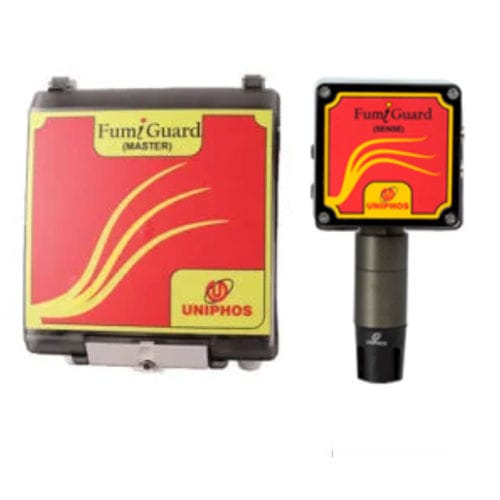

The Uniphos FumiGuard is a continuous gas detection system for perimeter and fence-line monitoring of fumigated areas. It comprises a master controller and up to 8 modular detection heads that can be connected in a daisy-chain (loop) to minimise cabling. Built-in GSM connectivity uploads measured readings to the cloud for remote viewing and configurable alarms, enabling continuous perimeter monitoring and assistance with regulatory compliance.
Application
Features
Technical specifications
The Uniphos FumiGuard is a continuous gas detection system for perimeter and fence-line monitoring of fumigated areas. It comprises a master controller and up to 8 modular detection heads that can be connected in a daisy-chain (loop) to minimise cabling. Built-in GSM connectivity uploads measured readings to the cloud for remote viewing and configurable alarms, enabling continuous perimeter monitoring and assistance with regulatory compliance.
Application
- Online perimeter and fence-line monitoring of fumigated storage, silos or treatment zones.
- Detection of PH3 at TLV levels for worker safety and site protection.
Features
- Gas detected: PH3
- Detection principle: Electrochemical sensor
- Range: 0–20 ppm
- Resolution: 0.01 ppm
- Communication / interface: MODBUS (RS‑485)
- Modular detection heads with quick connectors for fast, error‑reduced installation
- Microcontroller-based architecture with pluggable smart sensors
- GSM connectivity for cloud upload and remote alarm notifications
Technical specifications
- Sensor / Transmitter
- Gas detected: PH3
- Detection principle: Electrochemical technology
- Detection range: 0–20 ppm
- Resolution: 0.01 ppm
- Gas sampling: Diffusion type
- Warm up time: Less than 2 min
- Response time (T90): Less than 60 s
- Accuracy: ±2%
- Drift: Less than 2%
- Power supply: 24 V DC (provided from Master Controller)
- Communication / interface: MODBUS
- Operating temperature: 0–50 °C
- Operating life of sensor: 2 years (typ.)
- Dimensions: 210 x 150 x 90 mm (L x W x H)
- Construction material: Polyester
- Electrical connections: Quick connectors with polarity for simple, error-free connection
- Master Controller
- Display: 7" TFT touch screen
- Number of channels: Up to 16
- Input signal: RS-485 MODBUS RTU
- Output signal: RS-485 MODBUS RTU
- Alarms: 3 potential-free relay contacts
- Data logging: USB Host (CSV format)
- Supply voltage (input): 110–230 V AC
- Output voltage: +24 V DC (for transmitters)
- Enclosure: MOC polycarbonate
- Weight: Approximately 6 kg
- Dimensions: 400 x 300 x 132 mm
