Phosphine phosphine sensor FumiTrack

PH3for food storagefor agriculture and animal husbandry

Product Overview

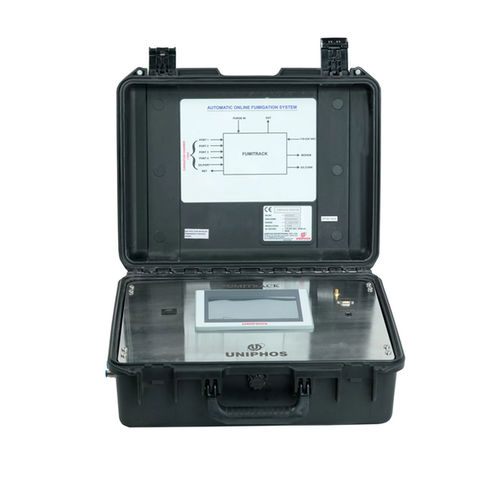

Uniphos FumiTrack Multiport is a portable, programmable, fully automatic multi-port gas monitor designed for periodic monitoring of phosphine (PH3) during fumigation operations. Housed in a Pelican Storm Case for field protection, the main unit measures from up to 4 sampling ports; adding the 8-port Expansion Module expands monitoring up to 12 ports. Embedded IoT features and an integrated GSM modem enable automatic cloud upload of concentration data (Cycle No., Date, Time, Site & Location). Once programmed, the system operates automatically for the full fumigation period without human intervention.

Application

• Fully automatic multi-port gas monitor for process control and compliance monitoring during fumigation

Features

• Interface: Colour TFT touch-screen
• Range: PH3 0–2000 ppm (option up to 0–5000 ppm)
• Programmable menus: user-definable cycles and sampling intervals; can run multiple fumigation cycles unattended
• Data logging: logs cycle number, date, time, site and location to USB memory drive
• Remote connectivity: integrated GSM modem for cloud upload and remote monitoring
• Gas sampling: inbuilt pump draws samples from up to 100 m (main unit)
• Enclosure: weatherproof and waterproof Pelican Storm Case for field deployment

Main Unit Specifications

• Gas: Phosphine (PH3)
• Concentration range: 0–2000 ppm (option up to 0–5000 ppm)
• Resolution: 1 ppm
• Response time (T90): < 30 s after gas stabilizes in sensor hood
• Accuracy: ±2% (depends on calibration gas & sampling system)
• Operating temperature: 0°C to +45°C
• Operating pressure: Ambient ±10%
• Gas sampling: sample draw type with inbuilt pump
• Sampling time / Purge time: user settable
• Data logging: available to USB
• Inbuilt pump flow rate: 800–1000 ml/min
• Power supply: 110–230 V AC, 50–60 Hz
• Construction material: Pelican Storm Case

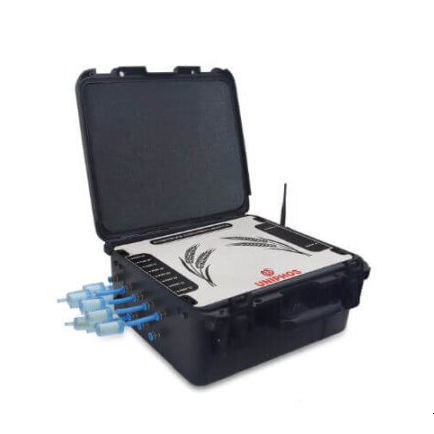

FumiTrack Expansion Module Specifications

• Gas compatible: PH3
• Gas sampling: sample draw type with 2 L/min suction capacity (sampling distance up to ~300 ft / ~100 m)
• No. of zones: 8 inlet ports
• Electronics: fully automated
• Communication: RS485 (2-wire) interface, proprietary protocol
• Power supply: 110–240 V AC, 50/60 Hz; inbuilt SMPS (+24V, +5V, -5V, GND)
• Enclosure: robust, weatherproof Pelican Storm Case
• Operating temperature: -10°C to +50°C
• Operating pressure: Ambient ±10%
• Weight: approx. 2 kg
• Dimensions: 487 × 386 × 185 mm

Technical specifications

• Brand: Uniphos Envirotronic
• Model: FumiTrack Multiport with Expansion Module
• Monitored gas: Phosphine (PH3)
• Measurement range: 0–2000 ppm (option up to 0–5000 ppm)
• Resolution: 1 ppm
• Response time: < 30 s (after stabilization in sensor hood)
• Accuracy: ±2% (dependent on calibration gas & sampling)
• Main unit pump flow rate: 800–1000 ml/min
• Expansion module pump capacity: 2 L/min (sampling up to ~300 ft)
• Ports: 4 ports standard, expandable with 8-port module (up to 12 ports total)
• Data logging: logs Cycle No., Date, Time, Site & Location to USB
• Remote connectivity: GSM modem for cloud upload
• Interface: Colour TFT touch-screen
• Power supply: 110–230 V AC (main) / 110–240 V AC (expansion)
• Communication (expansion): RS485 (2-wire)
• Enclosure: Pelican Storm Case (weatherproof / waterproof)
• Operating temp (main): 0°C to +45°C; (expansion): -10°C to +50°C
• Operating pressure: Ambient ±10%
• Weight (expansion): approx. 2 kg
• Dimensions (expansion): 487 × 386 × 185 mm
