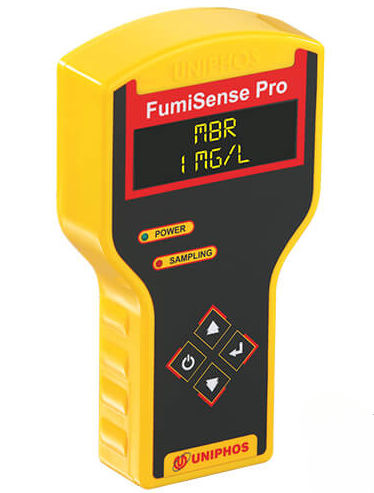

Personal monitor with data logger FumiSense Pro MBr- Lo

Product overview
Fumisense Pro MBr- LO is a handheld Methyl Bromide (MBr) monitor designed to detect and measure MBr levels outside fumigated stacks, silos or ships for leak detection and area monitoring. The instrument includes an inbuilt air sampling pump, 20×4 backlit OLED and user‑settable datalogging for concentration, date, time and location. Measurement range is 0–200 ppm with 1 ppm resolution.

Application

• Leak detection during fumigation operations
• Area and personal safety monitoring around silos, stacks and cargo holds
• Regulatory compliance and record keeping

Features

• Range: 0–200 ppm
• Resolution: 1 ppm
• Display: 20×4 backlit OLED for clear readout
• Inbuilt air sampling pump; can draw sample from up to 30 m
• Sampling modes: continuous and batch sampling
• Data logging: stores gas concentration with date, time and location identifiers (warehouse/silo numbers)
• USB interface and GUI for data transfer, sorting and report generation
• User-settable alarm set point (low-range detector)
• Runtime: approx. 6–8 hours on 7.4V Li‑ion rechargeable battery pack
• Pump flow rate: 400–800 ml/min

Specifications

• Gas detected: Methyl Bromide (MBr)
• Range: 0–200 ppm
• Resolution: 1 ppm
• Sensor type: Solid state sensor
• Accuracy: Inherently ±2% FS (dependent on calibration gas and method)
• Drift: <2% of signal per month at constant temperature and pressure
• Sampling operation: pump runs continuously until stopped via SET key
• Alarm: one user-settable alarm set point
• Data storage: test records with gas concentration, alarm set points, date and time
• Power source: 7.4V Li‑ion rechargeable battery pack
• Power consumption: 3.5V DC, 60 mA
• Inbuilt pump flow rate: 400–800 ml/min
• Operating temperature: -10 °C to 50 °C
• Display: Large 20×4 alphanumeric OLED, backlit
• Enclosure: High impact ABS
• Dimensions: H 190 mm × D 40 mm × W1 110 mm × W2 65 mm
• Weight: 500 g

Accessories

• Dust filter
• Battery charger
• Data download cable (USB)
• Outlet coupler
