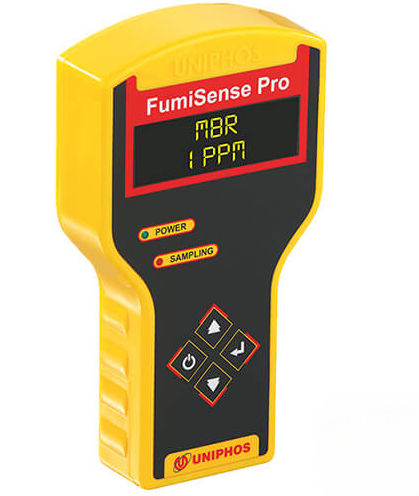

Personal monitor with data logger FumiSense Pro MBr-Hi

Overview
FumiSense Pro MBr- HI is a handheld methyl bromide (MBr) gas monitor designed to measure fumigation concentrations inside stacks, silos and ship cargo holds. It includes an inbuilt air sampling pump capable of drawing samples from up to 30 m and an NDIR sensor measuring MBr up to 200 g/m3. The backlit 20×4 OLED display provides clear readings in low light. User-settable datalogging records concentration values with date, time and location for traceability.

Application

• Monitoring methyl bromide concentrations during fumigation of warehouses, silos and ships

Features

• Range: 0–200 g/m3
• Resolution: 1 g/m3
• 20×4 backlit OLED display and inbuilt air sampling pump; sampling up to 30 m
• Continuous and batch sampling modes
• Datalogging capturing gas concentration, warehouse/silo ID, date & time
• USB interface for data transfer
• PC GUI for data download, sorting and report generation

Downloads

• Fumigation Brochure (PDF)
• FumiSense Pro MBr-Hi Data Sheet (PDF)

Technical specifications

• Gas: Methyl bromide
• Range: 0–200 g/m3
• Resolution: 1 g/m3
• Sensor: Non-Dispersive Infrared (NDIR)
• Accuracy: ±2% FS (depends on calibration)
• Drift: < 2% of signal per month at constant temperature and pressure
• Sampling modes: Continuous sampling; pump remains ON until SET key is pressed
• Alarm set point: One user-settable alarm (for low-range detectors)
• Data storage: Stores test records with gas concentration and alarm set points with date & time
• Power source: 7.4 V Li-ion rechargeable battery pack
• Inbuilt pump flow rate: 400–800 ml/min
• Power consumption: 3.5 V DC, 60 mA
• Runtime: Approx. 6–8 hours
• Data transfer: USB communication to computer
• Function keys: UP, DOWN, SET & ENTER
• Operating temperature: 0–40 °C
• Display: Large 20×4 alphanumeric OLED
• Enclosure: High-impact ABS
• Size (H×D×W1×W2): 205 × 38 × 108 × 65 mm
• Weight: 500 g
• Accessories: Dust filter, battery charger, data download cable and outlet coupler
