PH3 phosphine sensor FumiSense Pro PH3 - Lo

phosphineelectrochemicalfor leak detection

Overview

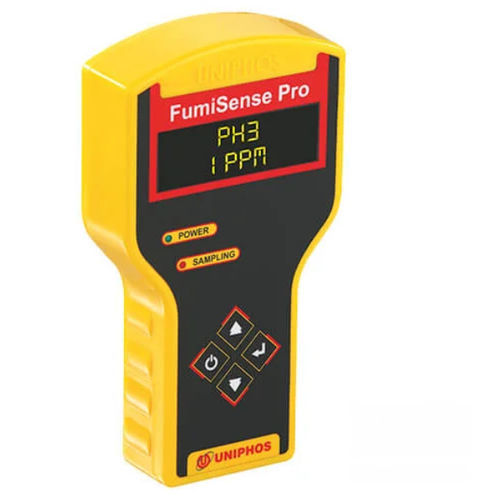

Uniphos FumiSense Pro – PH3 Lo is a handheld phosphine (PH3) monitor designed for rapid spot checks and leak detection around fumigated stacks, silos and ships. The unit features an inbuilt sampling pump, backlit OLED display and user-configurable data logging for traceable field inspections.

Applications

• Leak detection and spot checks around fumigation stacks, grain silos, containers and vessels.
• Personal safety checks at occupational TLV/TWA levels prior to access.
• Verification of sealing and perimeter checks during fumigation campaigns.

Key features

• Measurement range: 0–20 ppm PH3.
• Resolution: 0.01 ppm for precise low-range readings.
• Backlit 20×4 alphanumeric OLED display for low-light operation.
• Integrated air sampling pump capable of drawing samples up to 30 m.
• Continuous and batch sampling modes for flexible field use.
• User-settable datalogging with date, time, location and concentration values.
• USB interface and GUI for data download, sorting and report generation.

Technical specifications

• Sensor type: Electrochemical sensor for PH3.
• Accuracy: typically ±2% FS (dependent on calibration gas and method).
• Drift: <2% of signal per month under constant conditions.
• Alarm: one user-settable alarm set point for low-range detection.
• Inbuilt pump flow rate: 400–800 ml/min.
• Power: 7.4 V Li-ion rechargeable battery pack; instrument power 3.5 V DC, 60 mA.
• Runtime: approximately 6–8 hours per charge.
• Operating temperature: -20 °C to 40 °C.
• Display: 20×4 alphanumeric OLED, backlit.
• Enclosure: high-impact ABS.
• Dimensions: H 205 mm × D 38 mm × W1 108 mm × W2 65 mm.
• Weight: 500 g.

Accessories

• Dust filter.
• Battery charger.
• USB data cable and outlet coupler.
